SMPTE HFO Connector Panels (COPS System Panels)

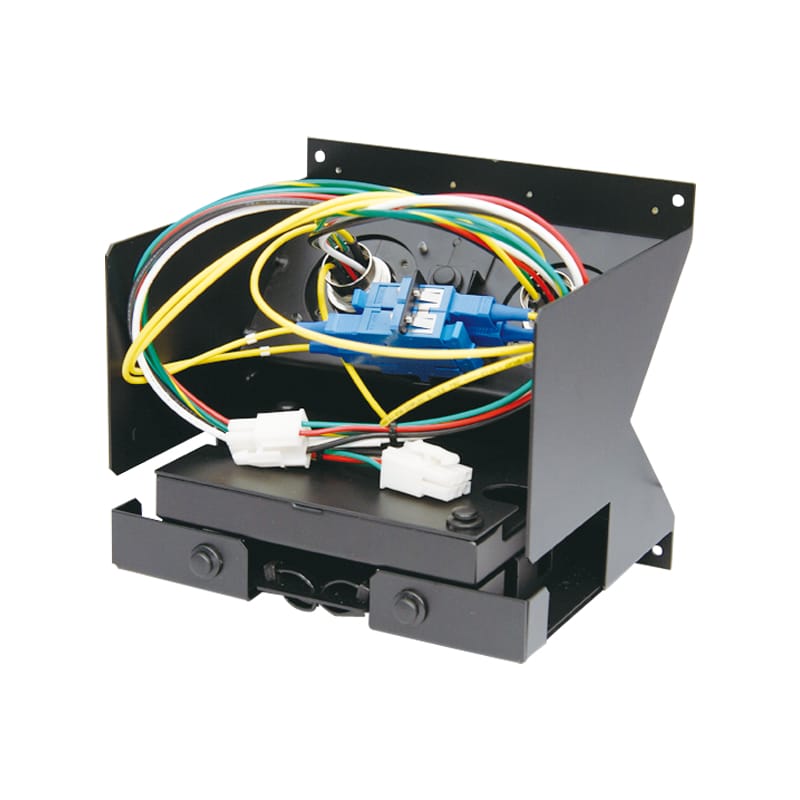

Pre-terminated HFO camera connector panel with built-in splice enclosure box provides easy and quick installation between HD camera system and terminal panel or rack. By combining the unit and frame, HFO camera connector panel enables a variety of layouts depending on the system design.
HFO Camera Connector Board is integrated with HFO Camera Connectors and HFO Composite Termination Box. Loaded it into the terminal board and the rack, you can use HD Camera with HFO Camera Cables in the Relay Line Equipment.
Key Features and Benefits
- Exclusive “5-directional Wiring”. (JP Patent No. 4388540)
- Convenient to build I/O interface between HD facilities and HD OB vans.
- Variety of choice of 2RU/3RU and wall/rack mount.
- Pre-terminated HFO connectors reduce installation time dramatically.
- Cost effective
- Lightweight aluminium chassis
COPS Series (SMPTE)
| Model | Height | Description |
| COPS-FF3A | Wall Mount Type 3RU Height, W:197.6mm | 2x FCFRA (FCS003A-FR) |
| COPS-FM3A | 2x FCMRA (FCS003A-MR) | |
| COPS-FF2A | Wall Mount Type 2RU Height, W:197.6mm | 2x FCFRA (FCS003A-FR) |
| COPS-FM2A | 2x FCMRA (FCS003A-MR) | |
| COPS3-FF3A | Rack Mount Type 3RU | 6x FCFRA (FCS003A-FR) |
| COPS3-FM3A | 6x FCMRA (FCS003A-MR) | |
| COPS3-FF2A | Rack Mount Type 2RU | 6x FCFRA (FCS003A-FR) |
| COPS3-FM2A | 6x FCMRA (FCS003A-MR) |
*Canare OC series (Hybrid-OPS profile) is also available. Please contact us for more details.

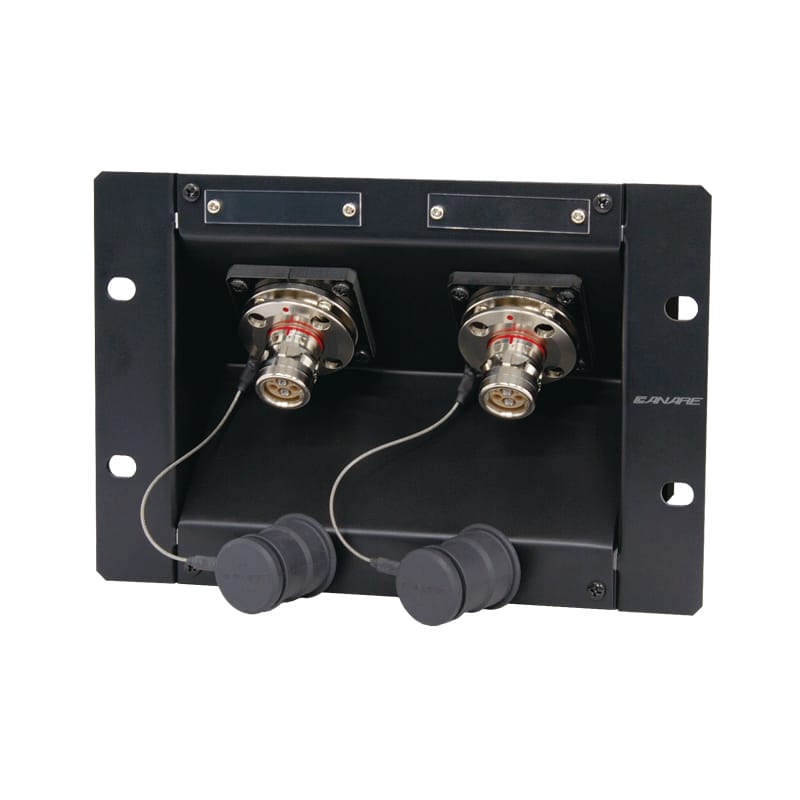

COPS-FF3A

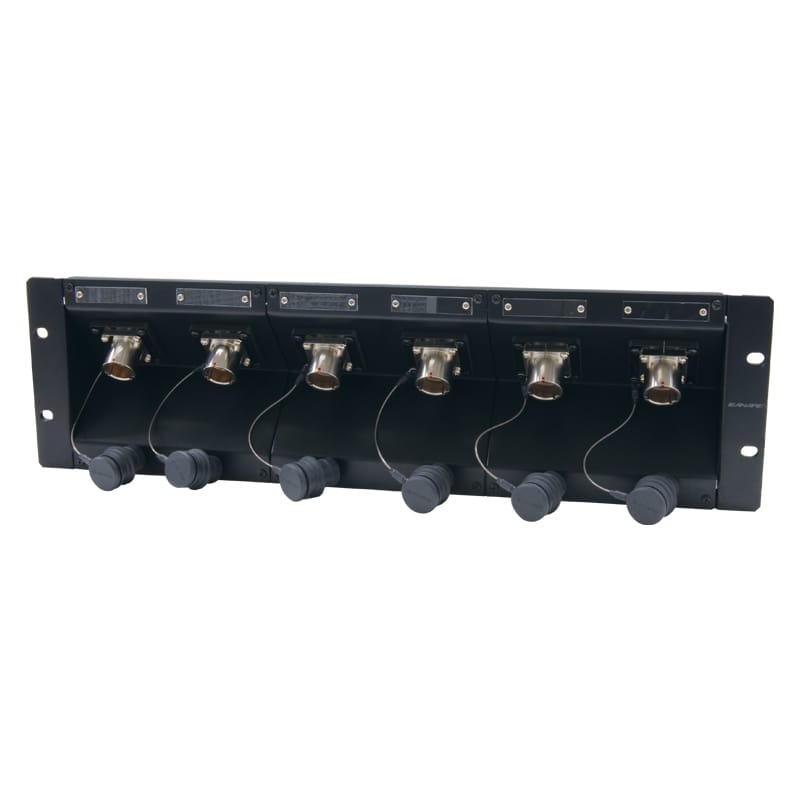

COPS-FF2A
Accessories:
Fiber-optic cable w/SC connector (2m), grounding cable, nylon connector, pin contact, socket contact, tie-band, fusion splice protection sleeve, splice holder, color-coded tube, mounting screw, laser warning label.
[NOTE] A separately available dedicated tool is required to assemble nylon connectors.
Individual Frame and Unit
| Model | Type | Suitable Frame/Unit |
| COUS-FF3A | 3 RU | Connector Unit of COPS(3)-FF3A |
| COUS-FM3A | Connector Unit of COPS(3)-FM3A | |
| COF-13C | Frame of COPS (for 1 unit) | |
| COF-33B | Frame of COPS3 (for 3 units) | |
| COUS-FF2A | 2 RU | Connector Unit of COPS(3)-FF2A |
| COUS-FM2A | Connector Unit of COPS(3)-FM2A | |
| COF-12B | Frame of COPS (for 1 unit) | |
| COF-32A | Frame of COPS3 (for 3 units) |
*Canare OC series (Hybrid-OPS profile) is also available. Please contact us for more details.
Optional Parts
| Model | Panel Size | HFO Connectors* (Assembly) |
| COU-BP3A | Blank Panel | COF-13A, COF-33B (3 RU frames) |
| COU-BP2A | COF-12A, COF-32A (2 RU frames) | |
| COU-CV3 | Top Cover | COUS-FF3A, COUS-FM3A (3 RU units) |
| COU-CV2 | COUS-FF2A, COUS-FM2A (2 RU units) |
Example of Use
Description
