Cable Checker

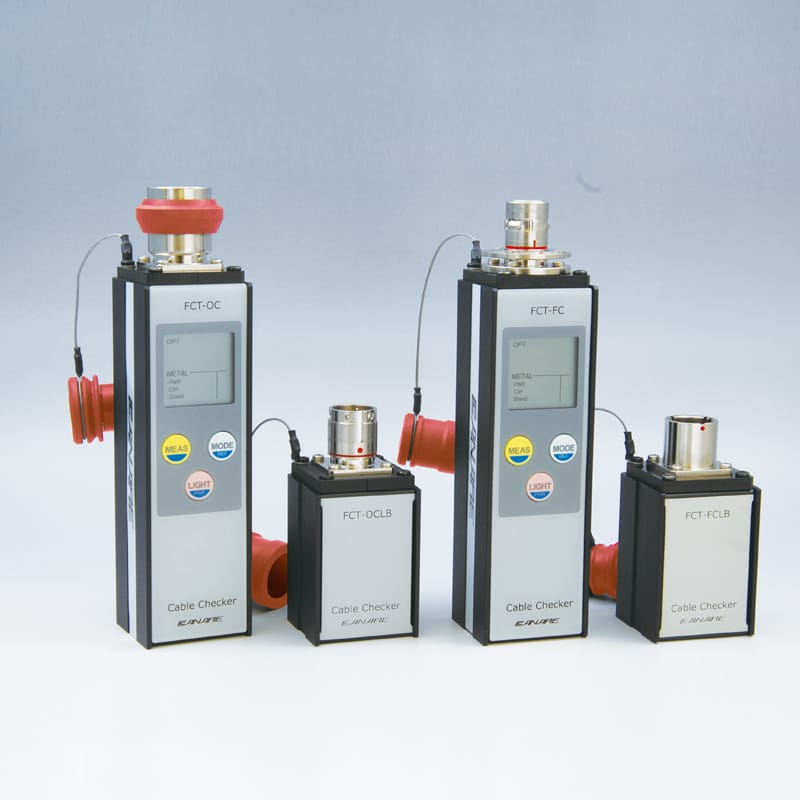

Canare Cable Checker allows fast, easy confirmation of HFO cables in the field. No heavy equipment to drag around. The compact design features a backlight digital display to measure optic loss/power and electrical continuity. Small and light, Canare Cable Checker helps make mobile installations smooth, secure and constant.
Key Features and Benefits
- Compact, hand-held design.
- Measured optical loss and power in addition to electrical signals.
- 2x AA, 20 hours battery life.

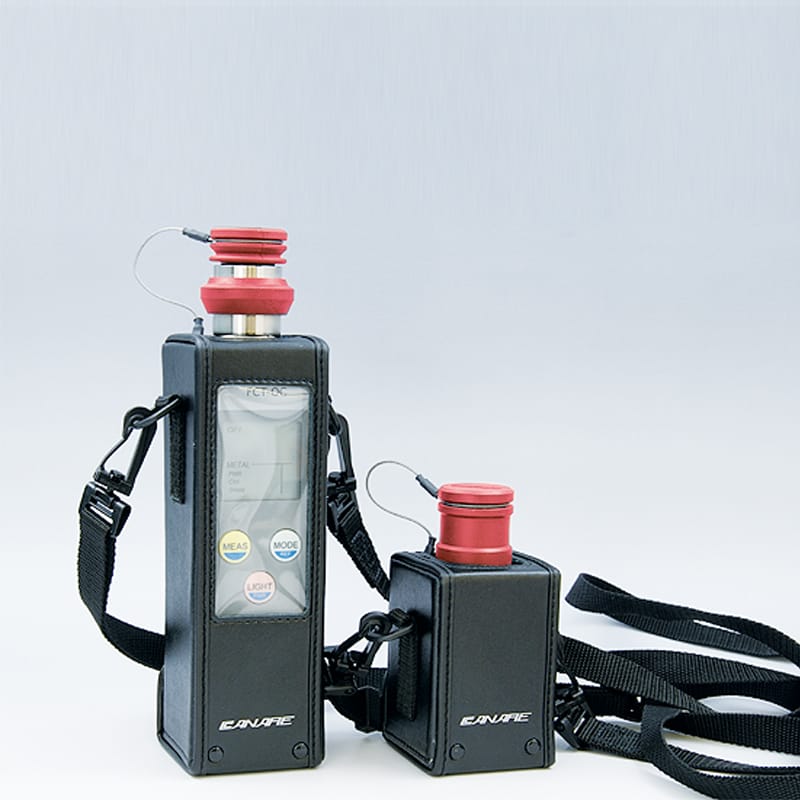

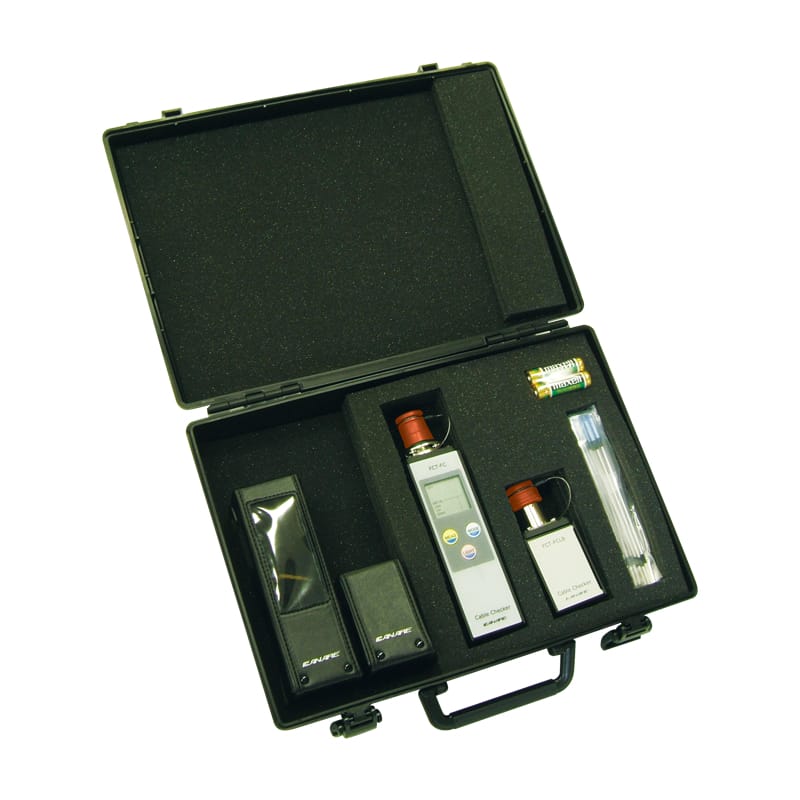

- The kit includes a storage case, carrying cases, AA Batteries, and cleaning sticks.
To prevent the product from being damaged, please NOTE the following points before connection:
- Discharge static electricity from HFO camera cable by grounding its metal part.
- Connect the Loop-back Unit first.
- Do not connect anything other than the Cable Checker and HFO camera cable.
Note: Red cap model will not work with black cap model.
Hybrid Fiber-Optic Camera Cable Checker
| Model | Individual Model | |
| Measuring Unit | Loop-back Unit | |
| FCT-FCKIT RED | FCT-FC RED | FCT-FCLB RED |
| FCT-OCKIT RED | FCT-OC RED | FCT-OCLB RED |
Specifications
| Kit Model | FCT-FCKIT RED | FCT-OCKIT RED |
| Connector | Canare FC series (SMPTE/ARIB) | Canare OC series (Hybrid-OPS) |
| LD | FP-LD | |
| Connector | Canare FC series (SMPTE/ARIB) | Canare OC series (Hybrid-OPS) |
| Wavelength | 1310 nm | |
| Output Power | -2.5 dBm | |
| Sensitivity | -24 to -2 dBm | |
| Optic Signals | Optical Power and Loss | |
| Electric Signals | Open-circuit and Short-circuit | |
| Maximum Length | 3.5 km (Canare LF-2SM9N) | |
| Battery/Life | 2 pcs of AA/ Approx. 20hours | |
| Operating Temperature | -10 to 60 deg C | |
| Dimensions | Measuring Unit: 46 x 46 x 150 mm Loop-back Unit: 46 x 46 x 65 mm |
|
| Weight | Measuring Unit: 380 g Loop-back Unit: 170 g |
|
| Accessories | Storage case, carrying cases, AA Batteries, and cleaning sticks | |
Related products
| Model | Type | Description | Standard package |
| ASPT-1 | Extraction Tool | Suitable for FCFA, FCF7A, FCFRA, FCFRCA and FCT-FCKIT (FCT-FC) | 1pc |
| CLETOP2.5/2.0 | Cleaning stick | Compact and disposable. Allows cleaning both the tips and sides of ferrules. Manufactured by NTT-AT. | 100pcs |
| 14347 CLEANER | IBC Brand Cleaner M-20 | Easy “one-push” cleaner. Allows cleaning the tips of ferrules without removing alignment sleeve. Manufactured by US Conec. | 1pc |
Useful Tips : How to Maintain Hybrid Fiber Optic Camera Connectors
The connector sections to be cleaned are the key parts, including the tips and sides of ferrules, the interior walls of alignment sleeves and the interior and exterior of connector shells. Note that scratches and particles of foreign matter on the tip of the ferrule can have a disabling effect on fiber-optic transmission. The following procedures should be used when cleaning hybrid fiber-optic camera connectors.
- For plugs, the interior surfaces of alignment sleeves and the tips of ferrules are to be cleaned with the non-alcohol treated cleaning stick using a gentle stroking action.
Canare FCFA and FCFRA enhance easy cleaning procedure for its innovative alignment sleeve and insulator detachable design.
US Patent: No.7241055B2, JP Patent: No.4340186. - For jacks, it is important to clean both the tips and sides of the completely protruding ferrules with the cleaning stick.
- Both the male and female connector shells tend to attract dust and metal particles, so it is important to clean both the insides and outsides using cotton gauze or similar material.
Cleaning Stick For HFO Connectors
Model : CLETOP 2.5/2.0
- Compact and disposable
- Allows cleaning both the tips and sides of ferrules
- Manufactured by NTT-AT
IBC Brand Cleaner M-20
Model: 14347 CLEANER
- Easy “one-push” cleaner
- Allows cleaning the tips of ferrules without removing alignment sleeve
- Manufactured by US Conec
