Ethernet Cable – Standard
Canare has a variety of ethernet cables available. This allows you to choose between flexible or standard types to suit your needs.
Key Features and Benefits
- Comply with PoE standards. (PoE, PoE+, PoE++)
- Flexible types: specially designed for mobile applications.
- Standard types: length markings on jacket.
Flexible and Rugged
|
Type |
Model |
Shield type |
Sales units |
Nom. O.D. |
Weight |
Conductors |
Impedance |
Insertion loss |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Cross sec. area |
DCR |
100 MHz |
250 MHz |
500 MHz |
|||||||
|
m |
mm |
kg/100m |
mm2/(AWG) Q'ty/mm |
ohm/100m |
ohm |
||||||
|
CAT6A Jacket color: Black, White |
RJC6A-F4PH |
Each pair of foil (U/FTP) |
200 |
7.6 |
5.5 |
0.27(23) |
9.4 |
100 |
19.1 |
31.1 |
45.3 |
|
CAT6A Jacket color: Black, Red, Blue, Light Blue, White |
RJC6A-4P-F |
Overall foil |
100 |
7.5 |
5.2 |
0.23 (24) 1 / 0.54A |
9.4 |
100 |
19.1 |
31.1 |
45.3 |
|
CAT6 Jacket color: Black |
RJC6-4P-F |
Overall foil (F/UTP) |
100 |
7.0 |
5.0 |
0.23 (24) 1 / 0.54A |
9.4 |
100 |
19.8 |
32.8 |
- |
|
CAT6 Jacket color: Black |
RJC6-4P+ |
N/A |
305 |
6.0 |
3.8 |
0.23 (23) 1 / 0.55A |
9.4 |
100 |
19.8 |
32.8 |
- |
|
CAT5e Jacket color: Light Blue |
RJC5E-4P+ |
N/A |
305 |
5.0 |
3.0 |
0.20 (24) 1 / 0.50A |
9.4 |
100 |
22.0 |
- |
- |
Key Features and Benefits / RJC6A-F4PH
- U/FTP Cat6A cable
- 10GbE 10GBASE-T network
- Maximum distance to 100 meters
- HDBaseT3.0 Premium certified
Key Features and Benefits / RJC6A-4P-F
- Standard CAT6A F/UTP cable
- Tightly twisted 24 AWG solid conductors
- Length markings on jacket
- HDBaseT certified
Key Features and Benefits / RJC6-4P-F
- Standard CAT6 F/UTP cable
- 24 AWG solid conductors
- Length markings on jacket
- HDBaseT certified
Key Features and Benefits / RJC6-4P+
- Standard CAT6 U/UTP cable
- 23 AWG solid conductors
- Length markings on jacket
- UL 444 type CM
- Packaged in a pull box
Key Features and Benefits / RJC5E-4P+
- lStandard CAT5e U/UTP cable
- 24 AWG solid conductors
- Length markings on jacket
- UL 444 type CM
- Packaged in a pull box

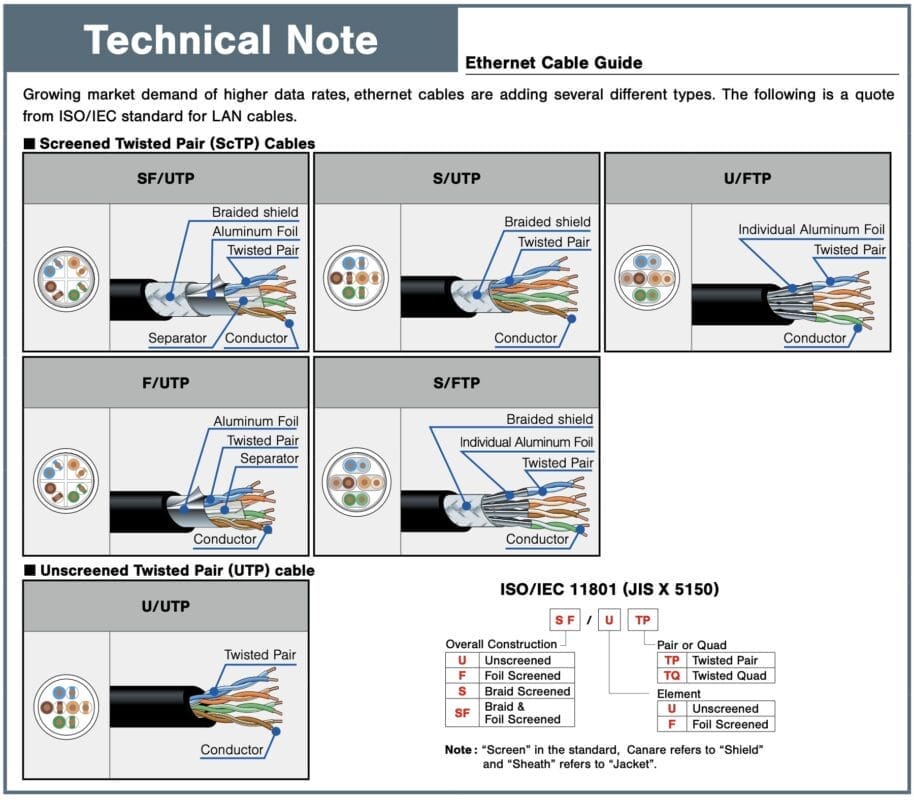

Technical Note
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
ETC003S-B ,ETC003S-M ,ETC005S-B ,ETC005S-M ,ETC015S-B ,ETC015S-M ,ETC01S-B ,ETC01S-BM ,ETC01S-M ,ETC02S-B ,ETC02S-BM ,ETC02S-M ,ETC03S-B ,ETC03S-BM ,ETC03S-M ,ETC05S-B ,ETC05S-BM ,ETC05S-M ,ETC07S-B ,ETC07S-M ,ETC100L-B ,ETC100L-M ,ETC10L-B ,ETC10L-M ,ETC10S-B ,ETC10S-BM ,ETC10S-M ,ETC15S-B ,ETC15S-M ,ETC20S-B ,ETC20S-BM ,ETC20S-M ,ETC30L-B ,ETC30L-M ,ETC30S-B ,ETC30S-BM ,ETC30S-M ,ETC50L-B ,ETC50L-M ,ETC50S-B ,ETC50S-BM ,ETC50S-M ,ETC6A-01-TN ,ETC6A-02-TN ,ETC6A-03-N ,ETC6A-03-T ,ETC6A-03-TN ,ETC6A-05-N ,ETC6A-05-T ,ETC6A-05-TN ,ETC6A-10-N ,ETC6A-10-T ,ETC6A-10-TN ,ETC6A-100-N ,ETC6A-100-T ,ETC6A-20-N ,ETC6A-20-T ,ETC6A-20-TN ,ETC6A-30-N ,ETC6A-30-T ,ETC6A-30-TN ,ETC6A-50-N ,ETC6A-50-T ,ETC6A-50-TN ,ETC6A-70-N ,ETC6A-70-T ,ETC70L-B ,ETC70L-M |
|---|
