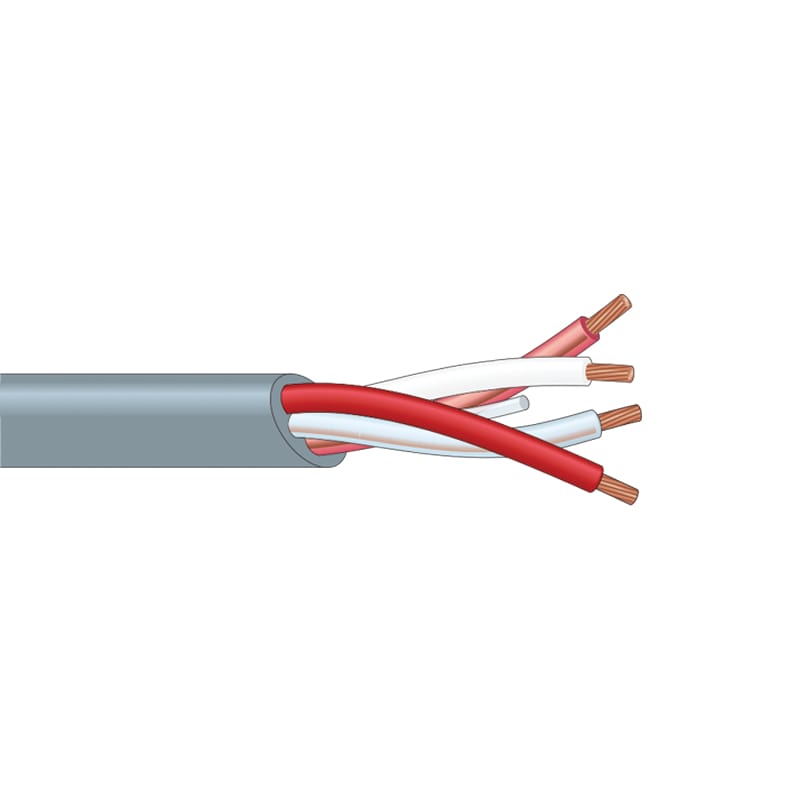

4 Conductor Speaker Cable for Fixed Installation
Four-conductor configuration minimizes noise and polyethylene insulation reduces induction rate to boost frequency characteristics.
Key Features and Benefits
- 4-conductor style construction.
- Star Quad design reduces EMI noise.
- Low capacitance and resistance.
| Type | Model | Pair cross- sec | Nom. O.D | Weight | Composition | Electrical characteristics | ||||
| No. of cond. | Cross sec area (AWG) mmsup>2(AWG) | Cond. comp Q'ty/mm | Twist pitch | Cond. D.C.R. | Nom capacitance.* |
|||||
| mm2 | mm | kg/100m | mm | ohm/100m | pF/m | |||||
 Jacket color for 4S10F, 4S12F, 4S14F, 4S18F: gray, black 4S10FG, 4S12FG: gray | 4S10F | 3.5 | 9.6 | 15 | 4 | 1.75(15) | 33/0.26A | 100 | 1.1 | 144 |
| 4S12F | 5.6 | 11.6 | 22 | 4 | 2.81(13) | 35/0.32A | 120 | 0.7 | 152 | |
| 4S14F | 8.0 | 14.0 | 32 | 4 | 4.02(12) | 50/0.32A | 120 | 0.5 | - | |
| 4S18F | 14.2 | 17.5 | 53 | 4 | 7.08(9) | 88/0.32A | 150 | 0.3 | - | |
| 4S10FG | 3.5 | 9.6 | 15 | 4 | 1.75(15) | 33/0.26(OFC) | 100 | 1.1 | 144 | |
| 4S12FG | 5.6 | 11.6 | 22 | 4 | 2.8(13) | 35/0.32(OFC) | 120 | 0.7 | 152 | |
*Capacitance between conductors.
Key Features of 4S10F, 4S12F, 4S14F, 4S18F
Special supple jacket designed for use in building conduits.
Key Features of 4S10FG, 4S12FG
The G versions feature oxygen-free copper (OFC, JIS H3510) conductors.
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
4S10F ,4S10FG ,4S12F ,4S12FG ,4S14F ,4S18F |
|---|
