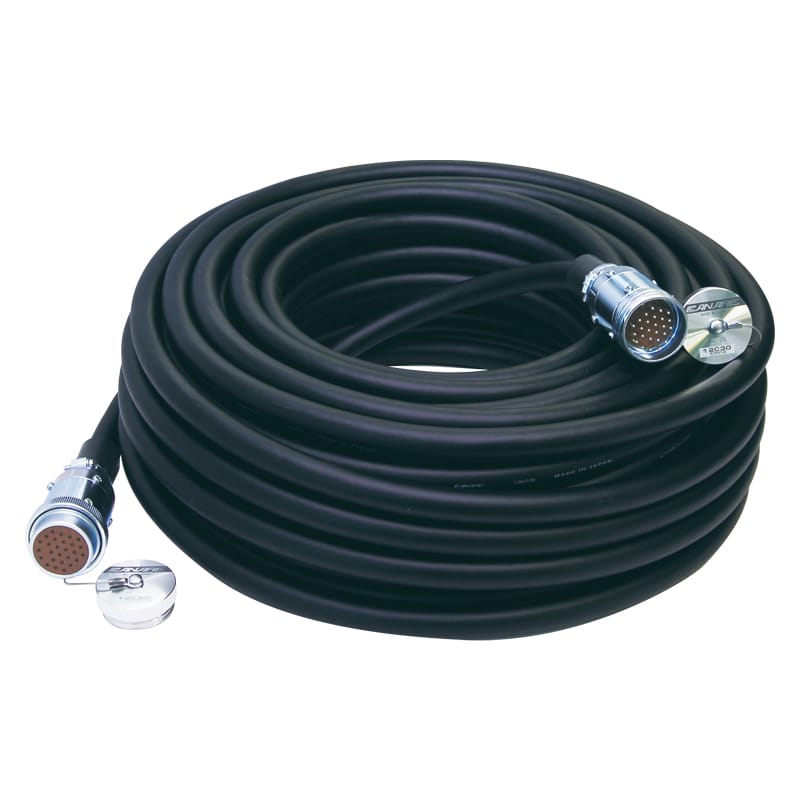

Snake Trunks
High quality multi-channel audio snake cable.
Key Features and Benefits
- Assembled with Canare multichannel audio cable.
- Terminated at both ends with MIL Spec multipin connector.
- Dust caps are included.
- 8, 12, 16, 24 or 32 channels.
8 Channel
L-4E3
| Connector | : NK27-21C-3/4-R、NK27-22C-3/4-R |
| Cable | : L-4E3-8P (black) |
| Rubber bushing | : AN3420-12 + Heat Shrink Tube |
| Barrel Extension | : NK-AD1-R |
| Dust cap | : NC-01、NC-02 |
| Model | Length (m) | Weight (kg) |
| 8C05-E3 | 5 | 1.6 |
| 8C10-E3 | 10 | 3.0 |
| 8C30-E3 | 30 | 8.4 |
| 8C50-E3 | 50 | 13.8 |
M2
| Connector | : NK27-21C-3/4-R、NK27-22C-3/4-R |
| Cable | : M202-8AT (black) |
| Rubber bushing | : AN3420-10,12 + Heat Shrink Tub |
| Barrel Extension | : NK-AD1-R |
| Dust cap | : NC-01、NC-02 |
| Model | Length (m) | Weight (kg) |
| 8C10-M2 | 10 | 1.7 |
| 8C30-M2 | 30 | 4.5 |
| 8C50-M2 | 50 | 7.3 |
8 Channel
12 Channel
L-4E3
| Connector | : NK27-21C-7/8-R、NK27-22C-7/8-R |
| Cable | : L-4E3-12P (black) |
| Rubber bushing | : AN3420-16 |
| Barrel Extension | : NK-AD1-R |
| Dust cap | : NC-01、NC-02 |
| Model | Length (m) | Weight (kg) |
| 12C05-E3 | 5 | 2.1 |
| 12C10-E3 | 10 | 3.9 |
| 12C30-E3 | 30 | 11.1 |
| 12C50-E3 | 50 | 18.3 |
M2
| Connector | : NK27-21C-3/4-R、NK27-22C-3/4-R |
| Cable | : M202-12AT (black) |
| Rubber bushing | : AN3420-10,12 + Heat Shrink Tube |
| Barrel Extension | : NK-AD1-R |
| Dust cap | : NC-01、NC-02 |
| Model | Length (m) | Weight (kg) |
| 12C10-M2 | 10 | 2.1 |
| 12C30-M2 | 30 | 5.8 |
| 12C50-M2 | 50 | 9.3 |
12 Channel
16 Channel
L-4E3
| Connector | : FK37-21C-7/8-R、FK37-22C-7/8-R |
| Cable | : L-4E3-16P (black) |
| Rubber bushing | : AN3420-16 |
| Barrel Extension | : FK-AD2-R |
| Dust cap | : FC-01、FC-02 |
| Model | Length (m) | Weight (kg) |
| 16C05-E3 | 5 | 2.6 |
| 16C10-E3 | 10 | 4.9 |
| 16C30-E3 | 30 | 14.1 |
| 16C50-E3 | 50 | 23.3 |
M2
| Connector | : FK37-21C-7/8-R、FK37-22C-7/8-R |
| Cable | : M202-16AT (black) |
| Rubber bushing | : AN3420-10,12,16 |
| Barrel Extension | : FK-AD2-R |
| Dust cap | : FC-01、FC-02 |
| Model | Length (m) | Weight (kg) |
| 16C10-M2 | 10 | 2.7 |
| 16C30-M2 | 30 | 7.5 |
| 16C50-M2 | 50 | 12.3 |
16 Channel
24 Channel
L-4E3
| Connector | : (D/MS3106B32A-10S+D/MS3057-20A)×2 |
| Cable | : L-4E3-24P (black) |
| Rubber bushing | : AN3420-20 |
| Barrel Extension | : EB-02 |
| Dust cap | : D/MS25042-32D |
| Model | Length (m) | Weight (kg) |
| 24C05-E3 | 5 | 4.3 |
| 24C10-E3 | 10 | 7.7 |
| 24C30-E3 | 30 | 21.7 |
| 24C50-E3 | 50 | 35.7 |
M2
| Connector | : (D/MS3106B32A-10S + D/MS3057-20A)×2 |
| Cable | : M202-24AT (black) |
| Rubber bushing | : AN3420-16,20 + Heat Shrink Tube |
| Barrel Extension | : EB-02 |
| Dust cap | : D/MS25042-32D |
| Model | Length (m) | Weight (kg) |
| 24C10-M2 | 10 | 4.0 |
| 24C30-M2 | 30 | 10.4 |
| 24C50-M2 | 50 | 16.8 |
Extension Cord
| Connector | : < D/MS3101A32A-10P + D/MS3057-20A > × 2 |
| Cable | : L-4E3-24P (black) |
| Rubber bushing | : AN3420-20 |
| Barrel Extension | : EB-02 |
| Dust cap | : D/MS25043-32D |
| Model | Length (m) | Weight (kg) |
| 24C005-E3MS22* | 0.5 | - |
24 Channel
32 Channel
M2
| Connector | : (D/MS3106B36-73S + D/MS3057-24A)×2 |
| Cable | : M202-32AT (black) |
| Rubber bushing | : AN3420-16,20,24 |
| Barrel Extension | : EB-03 |
| Dust cap | : D/MS25042-36D |
| Model | Length (m) | Weight (kg) |
| 32C10-M2 | 10 | 4.8 |
| 32C30-M2 | 30 | 13.1 |
| 32C50-M2 | 50 | 21.0 |
32 Channel
Extension Cord
| Connector | : < D/MS3101A36-73P + D/MS3057-24A > × 2 |
| Cable | : M202-32AT (black) |
| Rubber bushing | : AN3420-16,20,24 |
| Barrel Extension | : EB-03 |
| Dust cap | : D/MS25043-36D |
| Model | Length (m) | Weight (kg) |
| 32C005-M2MS22* | 0.5 | - |
Note: Connecting cables 24C005-E3MS22 and 32C005-M2MS22 are to be used to interconnect snake trunks only and they do not mate with our other standard snake system.
