L-4E5AT ,L-4E6AT ,L-4E6S |
|---|
Star Quad Microphone Cables
Effectively reduce noise levels to 1/10 that of general-purpose, 2-conductor shielded cables.
Key Features and Benefits
- 4-conductor style construction.
- Designed for use with microphones, and excellent for all line-level signals as well.
- Cross Linked PE Insulation.
- Reduced Handling Noise.
Aluminum Foil Shield
Canare Star Quad is designed for use with microphones but is also excellent for all line-level signals (e.g. mixer to power amps). The 4-conductor Star Quad arrangement, cancels electromagnetically induced noise from SCR dimmer packs, fluorescent lighting ballasts and AC power transformers. Handling noise is prevented by use of cotton filler material.
Excellent frequency response is maintained due to special irradiated polyethylene insulation which provides a low capacitance dielectric.
Effectively reduce noise levels to 1/10 that of general-purpose, 2-conductor shielded cables.
L-4ExAT Series
Key Features
- Designed for fixed installations
- Aluminum foil shielding provides 100% coverage
- DuPont Kevlar* filler can resist stretching of cable when pulled through conduit.
- Foil shield and drain wire offer quick assembly work
| Model | Nom. O.D | Weight | Composition | Electrical characteristics | ||||||
| No. of cond. | Cross sec area (AWG) and cond. comp. | Twist pitch | Shield | Cond. D.C.R. | Shield D.C.R. | Nom cap.* | Nom cap.** |
|||
| mm | kg/100m | mm2/(AWG) Q’ty/mm | mm | ohm/100m | ohm/100m | pF/m | pF/m | |||
| L-4E5AT | 5.0 | 3.3 | 4 | 0.18(25) 16/0.12A | 21 | AL foil | 10.7 | - | 164 | 222 |
| L-4E6AT | 6.2 | 5.0 | 4 | 0.31(23) 12/0.18A | 25 | 6.4 | - | 150 | 210 | |
Braided Shield

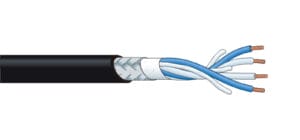

Canare Star Quad cable with braided shields is super flexible. We use large numbers of thin wire strands in the copper conductors and overall braided shield. We extrude a special compound PVC outer jacket that remains pliant at extremely low temperatures with no wait between cold shipping and installation.
L-4E6S
Key Features
- Bend resistant design: the conductor consists of ultrafine
- High-density braided shield
| Model | Nom. O.D | Weight | Composition | Electrical characteristics | ||||||
| No. of cond. | Cross sec area (AWG) and cond. comp. | Twist pitch | Shield Coverage (braid) | Cond. D.C.R. | Shield D.C.R. | Nom cap.* | Nom cap.** |
|||
| mm | kg/100m | mm2/(AWG) Q’ty/mm | mm | % | ohm/100m | ohm/100m | pF/m | pF/m | ||
| L-4E6S | 6.0 | 4.8 | 4 | 0.20(24) 40/0.08A | 20 | 94% | 9.8 | 3.1 | 150 | 185 |
