12G-SDI EO/OE Converters
An optical converter equipped with a reclocker that supports 12G-SDI signals.
Key Features and Benefits
- Supports 12G/6G/3G/HD/SD-SDI and DVB-ASI
- Capable of Pathological Test Pattern transmission
- (SMPTE RP-178, 198 Check Field Test Pattern)
- Super low latency
- Compact size
- No complicated settings
- 3-color LED signal indication
Note
- Please use EO12G-100B/EO12G-100A and OE12G-101B in combination with each other only. In some cases, transmission may not be performed normally in combination with other products. Please contact us for more details.
- Laser safety: This product equips Class 1 laser products. Do not watch laser beam directly whenever this product works. Even if the beam is from optical connector, your eyes may be damaged.
- Using with the power supply unit 161UPSC, the green (HD) status light is lit.
- The listed number is standard value.
Please see the products specifications for more details. - The converter requires a power supply unit (sold separately).
Categories: EO/OE Systems, 12G-SDI, All Products
Electric to Optic Converter (TX) 12G-SDI
Model | Type | Wavelength | Emission | Occupancy |
EO12G-100B | ![]() | 1310 nm | -2 dBm | 1 Slot |

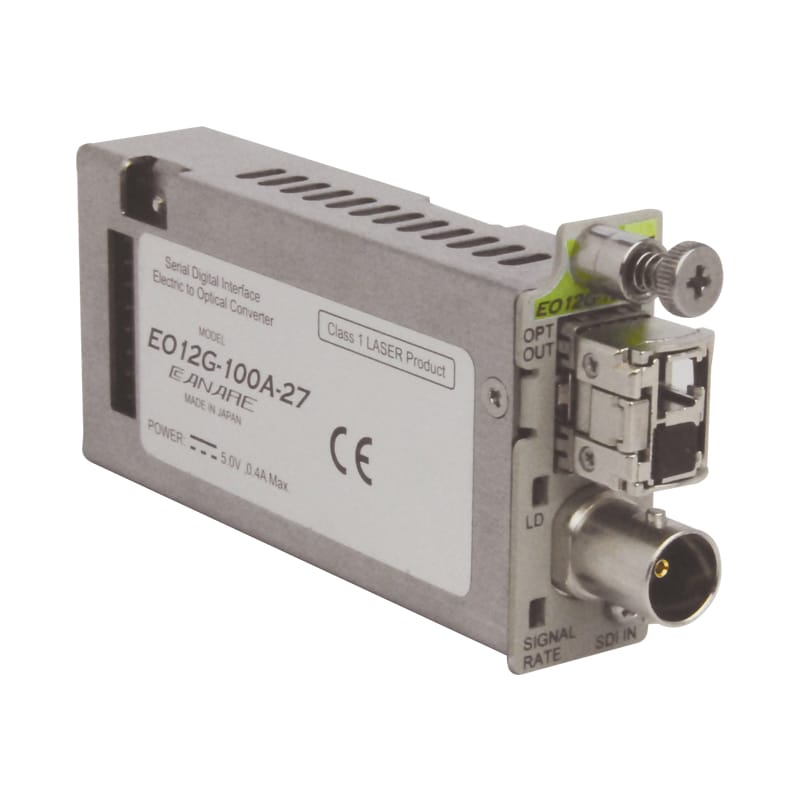

EO12G-100A-27 | ![]() for CWDM | 1271 nm | -1 dBm | 1 Slot |
EO12G-100A-29 | 1291 nm | |||
EO12G-100A-31 | 1311 nm | |||
EO12G-100A-33 | 1331 nm | |||
EO12G-100A-35 | 1351 nm | |||
EO12G-100A-37 | 1371 nm | |||
EO12G-100A-43 | 1431 nm | |||
EO12G-100A-45 | 1451 nm |
Optic to Electric Converter (RX) 12G-SDI
Model | Type | Wavelength | Sensitivity | Occupancy |
OE12G-101B | ![]() | 1260-1650 nm | -13 dBm | 1 Slot |
Specifications
Model | EO12G-100B | EO12G-100A** | OE12G-101B |
Convertibility | Electric to Optic | Optic to Electric | |
Fiber Type | Single Mode | ||
Optical Input | N/A | 1 x LC | |
Optical Output | 1 x LC | N/A | |
SDI Input | 1 x 75 ohm BNC | N/A | |
SDI Output | N/A | 1 x 75 ohm BNC | |
Dimensions | 17 x 43.4 x 78.4 mm |
||
Weight | Approx. 95 g | ||
Standards | SMPTE ST 2082-1, 2081-1, 424, 297-1, 292-1, 259, EN50083-9 |
Description
