Crimp Tools
Canare crimp tool offers reliable high-quality crimping performance in an easy-to-use design.
Key Features and Benefits
- Select the appropriate Die Set to suit the individual connector
- Hand crimp tool is required for Die Set, and sold separately
- Die Set are interchangeable
Crimp Tools
| Model | Description | Standard package |
| TC-1 | Canare standard hand crimp tool. | 1 |
| TC-2 | TCD-8HD, TCD-96C |

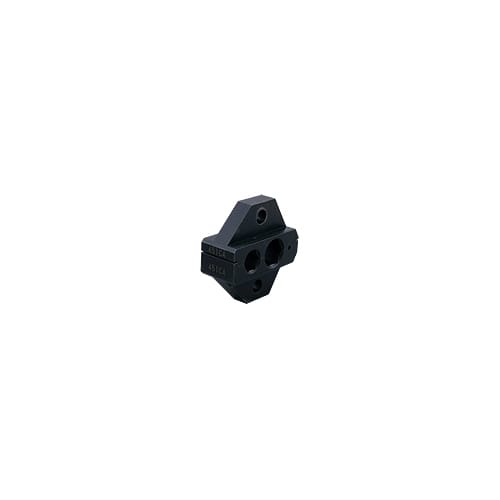

Die Sets
| Model | Pin crimp #1 (mm) | Pin crimp #2 (mm) | Sleeve crimp #3 (mm) | Sleeve crimp #4 (mm) | Hand Crimp Tools | Standard package |
| TCD-1DB | - | - | 3.94 | - | TC-1 | 1 pc |
| TCD-31C | 1.37 | - | 6.75 | - | ||
| TCD-3151D | 1.92 | - | 8.36 | 6.75 | ||
| TCD-316C | 1.35 | - | 9.4 | 6.75 | ||
| TCD-35CA | 1.35 | - | 7.6 | 5.85 | ||
| TCD-35D | 1.92 | - | 7.6 | 5.85 | ||
| TCD-35DF | 1.92 | 2.1 | 8.05 | 5.82 | ||
| TCD-4CA | 1.35 | - | 6.48 | - | ||
| TCD-451CA | 1.35 | - | 8.36 | 6.4 | ||
| TCD-5CF | 1.31 | - | 8.05 | - | ||
| TCD-5HD | 1.87 | - | 8.05 | - | ||
| TCD-55FA | 1.35 | 2.1 | 8.05 | - | ||
| TCD-55UHD | 1.62 | - | 8.05 | - | ||
| TCD-57C | 1.62 | - | 8.5 | - | ||
| TCD-65C | 1.92 | - | 9.4 | 7.6 | ||
| TCD-67HD | 2.1 | - | 10.2 | - | ||
| TCD-7CA | 1.87 | - | 10.2 | - | ||
| TCD-8HD | 2.4 | - | 11.26 | - | TC-2 | |
| TCD-96C | 1.92 | - | 11.26 | 9.4 | ||
| TCD-D253F | 1.1 | - | 5.1 | 5.85 | TC-1 | |
| TCD-D534F | 1.27 | - | 7.55 | 6.4 |
Compatible Connector
| Model | Compatible connector |
| TCD-35CA | BCP-D33UHD, BCP-B25HD, BCP-B25HW, BCP-B3F, BCP-B45HW, BCP-B53, BCP-A25, BCP-A25F, BCP-A3, BCP-A3AHD, BCP-A3F, BCP-A33, BCP-A5, BCP-A5F, BCP-VA3, BCP-VA5, BCP-LC3, BCP-LC3F, BCP-LC5, MBCP-C25F, MCF-V5C3, MCM-V5C3, RCAP-C25HD, RCAP-C3A, RCAP-C3F, RCAP-C53, RCAP-C5A, FP-C25HD, FP-C3, FP-C3F, FP-C53A, FP-C5, SPP-C33-CL, BCP-B26, BCP-B28, BCP-B56, BCP-A32, BCP-A55, RCAP-C25F, FP-C55A |
| TCD-35D | BP-C3, BP-C4, BP-C5, TNP-C3, TNP-C4, TNP-C5, RCAP-C3GS |
| TCD-35DF | BP-C5FA, BP-C51F, TNP-C5F, NP-C5F, NP-C51F, SP-C5F, SJ-C5F, SMAP-C3F, SMAP-C5F, SMAJ-C3F, SMAJ-C5F, NJ-C5F |
| TCD-4CA | BCP-B31F, BCP-B4F, BCP-A4, BCP-A4F, MBCP-C4, MBCP-C4F, BCJ-C4, RCAP-C4A, RCAP-C4F, FP-C4, FP-C4F, VP-C4A, VWP-C4A, MVP-C4 |
| TCD-451CA | BCP-B31F, BCP-B4F, BCP-A4, BCP-A4F, BCP-A52, MBCP-C4, MBCP-C4F, BCJ-C4, RCAP-C4A, RCAP-C4F, FP-C4, FP-C4F, FP-C52, VP-C4A, VWP-C4A, MVP-C4 |
| TCD-5CF | BCP-B5F, BCP-B51F, BCP-LC5F, MBCP-C5F, RCAP-C5F, FP-C5F, BCP-A77, RCAP-C77 |
| TCD-5HD | BCP-C5HD |
| TCD-55FA | BCP-B5F, BCP-B51F, BCP-LC5F, MBCP-C5F, RCAP-C5F, FP-C5F, BP-C5FA, BP-C51F, TNP-C5F, NP-C5F, NP-C51F, SP-C5F, SJ-C5F, SMAP-C5F, SMAJ-C5F, BCP-A77, RCAP-C77, NJ-C5F, MBCP-C5F |
| TCD-55UHD | BCP-D55UHD |
| TCD-67HD | BCP-C6HD, BCP-C7HD |
| TCD-7CA | BCP-C71A, BCP-C7FA, FP-C7FA, FP-C71A |
| TCD-D253F | DCP-C25HD, DCP-C25HW, DCP-C3F, MDM-V4C25HW, MDF-V4C25HW, SVP-C25HW, MVP-C25HW, MCVP-C25HW, BCJ-D25HD, BCJ-D25HW, BCJ-D33UHD, HBCP-D25HD, HBCP-D25HW, HBCP-D33UHD, VWP-C25HW |
| TCD-D534F | DCP-C4F, DCP-C53, HBCP-D53 |
| TCD-8HD | BCP-D8UHD, BCP-C8HD |
| TCD-8DF | SP-C8F |
