3G-SDI EO/OE Converters
An optical converter equipped with a reclocker that supports 3G-SDI signals.
Key Features and Benefits
- Supports 3G/HD/SD-SDI and DVB-ASI
- Capable of Pathological Test Pattern transmission
(SMPTE RP-178, 198 Check Field Test Pattern) - Super low latency
- Compact size
- No complicated settings
- Cost effective
Electric to Optic Converter (TX)
| Model | Wavelength | Sensitivity | Dual Out | Occupancy |
| EO3G-100 | 1310 nm | -2.5 dBm | No | 1 Slot |
| EO3G-200 | Yes | 2 Slots | ||
| EO3G-100A-27 | 1271 nm | +2.5 dBm | No | 1 Slot |
| EO3G-100A-29 | 1291 nm | |||
| EO3G-100A-31 | 1311 nm | |||
| EO3G-100A-33 | 1331 nm | |||
| EO3G-100A-35 | 1351 nm | |||
| EO3G-100A-37 | 1371 nm | |||
| EO3G-100A-43 | 1431 nm | |||
| EO3G-100A-45 | 1451 nm | |||
| EO3G-100A-47 | 1471 nm | |||
| EO3G-100A-49 | 1491 nm | |||
| EO3G-100A-51 | 1511 nm | |||
| EO3G-100A-53 | 1531 nm | |||
| EO3G-100A-55 | 1551 nm | |||
| EO3G-100A-57 | 1571 nm | |||
| EO3G-100A-59 | 1591 nm | |||
| EO3G-100A-61 | 1611 nm |
Optic to Electric Converter (RX)
| Model | Wavelength | Emission | Monitor Out | Occupancy |
| OE3G-101 | 1200-1620 nm | -22 dBm | No | 1 Slot |

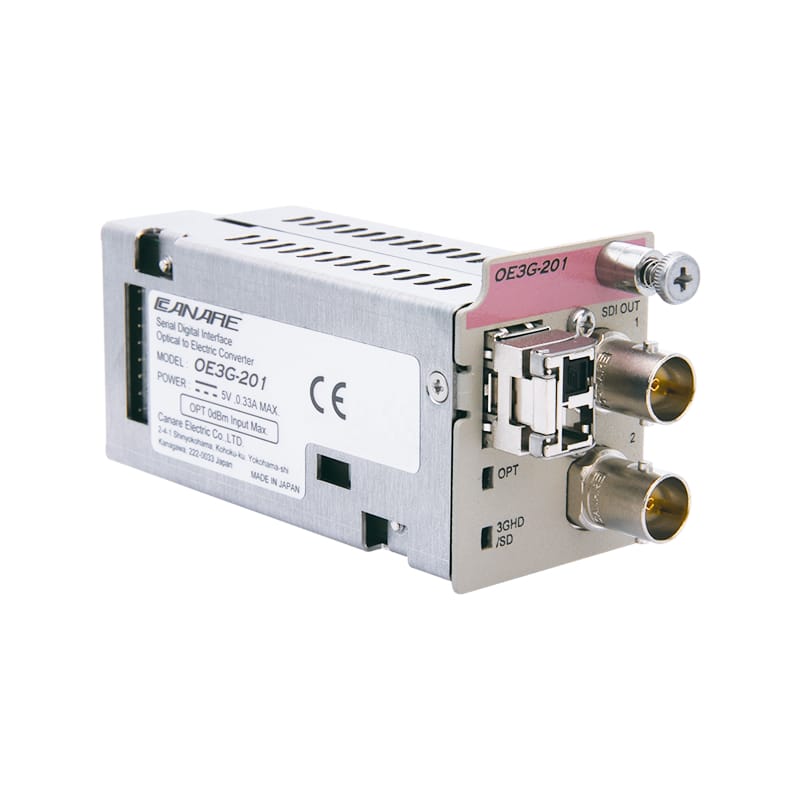

| OE3G-201 | Yes | 2 Slots |
Specifications
| Model | EO3G-100 | EO3G-200 | EO3G-100A | OE3G-101 | OE3G-201 |
| Convertibility | Electric to Optic | Optic to Electric | |||
| Optical Connector | 1 x LC (output) | 1 x LC (input) | |||
| Fiber Type | Single Mode | ||||
| SDI Input | 1 x 75 ohm BNC | 1 x 75 ohm BNC | 1 x 75 ohm BNC | N/A | N/A |
| SDI Output | N/A | 1 x 75 ohm BNC (no-reclocked) | N/A | 1 x 75 ohm BNC | 2 x 75 ohm BNC |
| Dimensions (mm) | 17 x 43.4 x 78.4 | 35.5 x 43.4 x 78 | 17 x 43.4 x 78.4 | 17 x 43.4 x 78.4 | 35.5 x 43.4 x 78 |
| Weight (approx.) | 100 g | 150 g | 95 g | 100 g | 150 g |
| Standards | SMPTE ST 259, 292-1, 297-1, 424, EN50083-9 | ||||
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
EO3G-100 ,EO3G-100A-27 ,EO3G-100A-29 ,EO3G-100A-31 ,EO3G-100A-33 ,EO3G-100A-35 ,EO3G-100A-37 ,EO3G-100A-43 ,EO3G-100A-45 ,EO3G-100A-47 ,EO3G-100A-49 ,EO3G-100A-51 ,EO3G-100A-53 ,EO3G-100A-55 ,EO3G-100A-57 ,EO3G-100A-59 ,EO3G-100A-61 ,EO3G-200 |
|---|
