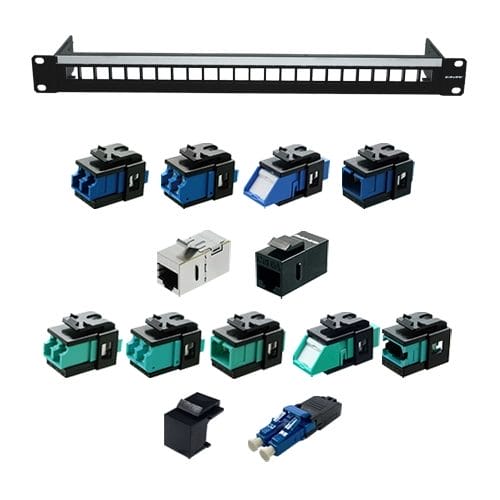

24-Port Keystone IP Panel
24-port Keystone IP panel designed specifically for broadcast stations and repeaters. A wide variety of attachments allow you to build your ideal IP system.
Key Features and Benefits
- Keystone couplers can be freely positioned relative to the 24-channel patchpanel

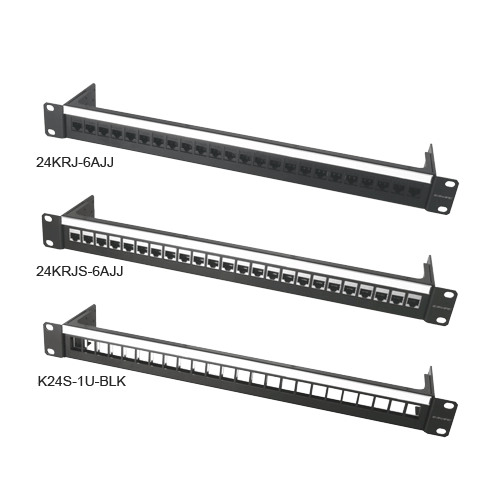

24-Port Keystone IP Patchbays
|
Type |
Panel Size |
Model |
Spec |
|---|---|---|---|
|
Color : Black |
1RU |
24KRJ-6AJJNEW |
24 × RJ45 Unshielded Cat6A Couplers |
|
Color : Black |
1RU |
24KRJS-6AJJNEW |
24 × RJ45 Shielded Cat6A Couplers |
24-Port Keystone IP Panel
|
Type |
Panel Size |
Model |
Spec |
|---|---|---|---|
|
Color : Black |
1RU |
K24S-1U-BLKNEW |
24holes Unshielded/Shielded Unloaded Panel |
Key Features and Benefits
- Unified design
- Robust construction
- 8.5 × 426mm free designation area
- Can be recessed 25mm.(*1)
Note :(*1) Can be recessed 50/75 mm by changing the mounting brackets to M-MA1U02A.
Accessories
|
Type |
Model |
Description |
|---|---|---|
|
|
M-KB01NEW |
Cable Tie Bar |
|
|
SG002-T36NEW |
Grounding Cable 0.2m |
|
|
SG032-T30NEW |
Grounding Cable 3.2m |
Key Features and Benefits
- Grounding cables are ideal for shielded Cat6A panels and a rack.

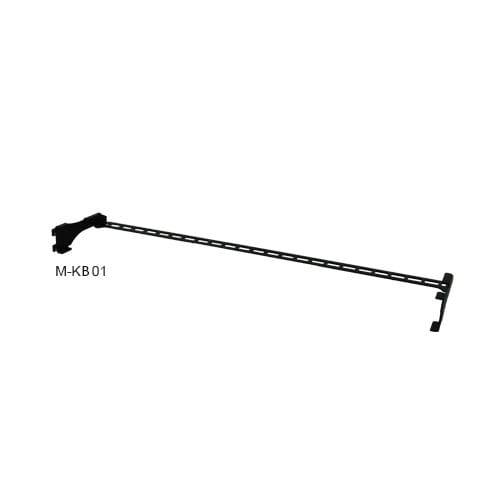

[ M-KB01 Example ]
[ SG032-T30 Accessories M6 1pc ]
Unique 7 Points
Unified Design
Canare IP panels are similar in appearance to our video patchbays.
Mobile Truck Ready
Canare IP panels are similar in appearance to our video patchbays.
Non - Splitted Designation Strip
8.5 × 426mm free designation area to write on.
Wide range of IP interface
Choose from 12 types of IP couplers.
No Special Tool
For interchanging couplers, just use a flathead screwdriver.
Depth Adjustable Front Mount
In case of space efficiency, patching surface can be recessed 25mm, 50mm or 75mm deeper.
Cable Tie Bar
Optional cable tie bar will help optimize wiring support.

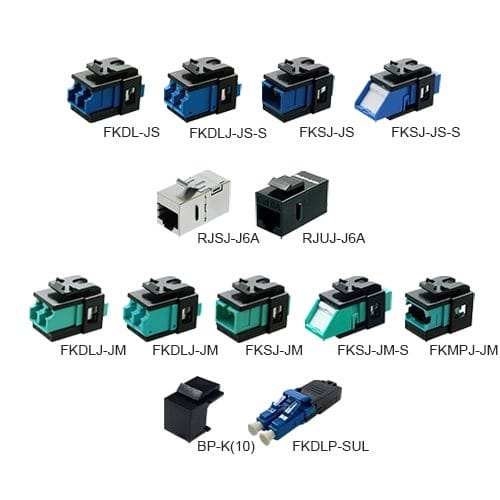

Keystone IP Couplers
|
Spec |
Type |
Model |
Description |
Compatible Standards |
|---|---|---|---|---|
|
RJ |
|
RJUJ-J6ANEW |
RJ45 Modular Relay Adapter |
IEC 60603-7 |
|
 |
RJSJ-J6ANEW |
RJ45 Modular Relay Adapter (shield) |
||
|
DLC |
|
FKDLJ-JSNEW |
DLC Adapter Module (SM) |
JIS C 5964-20 |
|
|
FKDLJ-JMNEW |
DLC Adapter Module (MM) |
||
|
|
FKDLJ-JS-SNEW |
DLC Adapter Module with shutters (SM) |
||
|
|
FKDLJ-JM-SNEW |
DLC Adapter Module with shutters (MM) |
||
|
SC |
|
FKSJ-JSNEW |
SC Adapter Module with shutters (SM) |
JIS C 5964-4 |
|
|
FKSJ-JMNEW |
SC Adapter Module with shutters (MM) |
||
|
|
FKSJ-JS-SNEW |
SC Adapter Module with shutters (SM) |
||
|
|
FKSJ-JM-SNEW |
SC Adapter Module with shutters (MM) |
||
|
MPO |
|
FKMPJ-JMNEW |
MPO Adapter Modul (MM) |
JIS C 5964-7 |
|
|
BP-K(10)NEW |
Blank panel (10 per pack) |
Key Features and Benefits
- Compatible with Keystone Panels.
- A wide array of different connection options.
- Fast and easy to install.
- Blank Plate : Protects unused ports from dirt and dust.
RJUJ-J6A
RJSJ-J6A
FKDLJ-J*
FKDLJ-J*-S
FKSJ-J*
FKSJ-J*-S
FKMPJ-JM
DLC Loopback
|
Type |
Model |
Description |
|---|---|---|
|
|
FKDLP-SULNEW |
DLC Loopback(U-LINK)(SM) |
Key Features and Benefits
- Loop signal for maintenance
- Built - in dust cap holder
FKDLP-SUL
