SFP Optical Transceivers
Hight cost performance, Reliable and high-performance generic optical transceiver.
- Reliable and high-performance generic optical transceiver.
- Compliant with MSA : Multi- source agreement.
- Broadcast IP system, data center, and telecommunications.
- 1-year product warranty.
SFP Optical Transceivers
| Fiber Type | Model | Description |
| Single Mode | TRP-011-DC13 | 1GbE SFP type |
| Single Mode | TRP-101-DC13 | 10GbE SFP+ type |
Key Features and Benefits
- Reliable and high-performance generic optical transceiver.
- Compliant with MSA : Multi- source agreement.
- Broadcast IP system, data center, and telecommunications.
- 1-year product warranty.

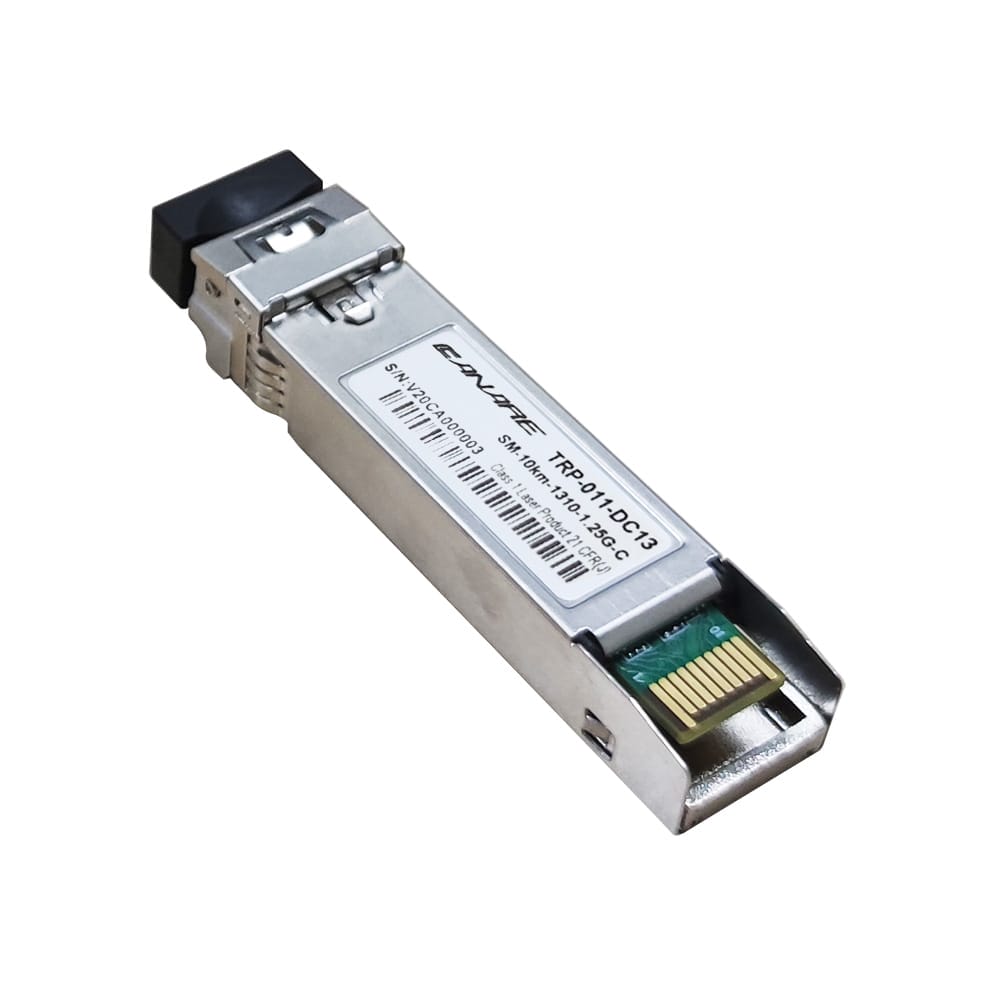

TRP-011-DC13
Specifications
Model | TRP-011 -DC13 | TRP-101-DC13 |
|---|---|---|
Optical Connector | 2 × LC | 2 × LC |
Wavelength | 1310nm | 1310nm |
Fiber Type | SM 9/125 | SM 9/125 |
Reach | 10km | 10km |
Standards | IEEE802.3z, 1000BASE - LX | IEEE802.3ae, 10GBASE - LR/LW |
Tx Output Power | -9.5dBm to -3.0dBm | -8.2dBm to +0.5dBm |
Rx Sensitivity | < -21dBm | < -14.4dBm |
Operating Temperature | 0 to 70 deg C | 0 to 70 deg C |

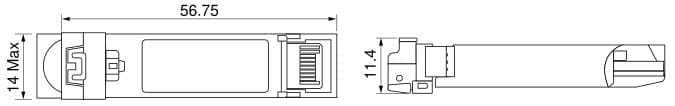

Dimensions (mm) | 14(W) × 11.4(H) × 56.75(D) | 14(W) × 11.4(H) × 56.75(D) |
Weight | 17g | 18g |
