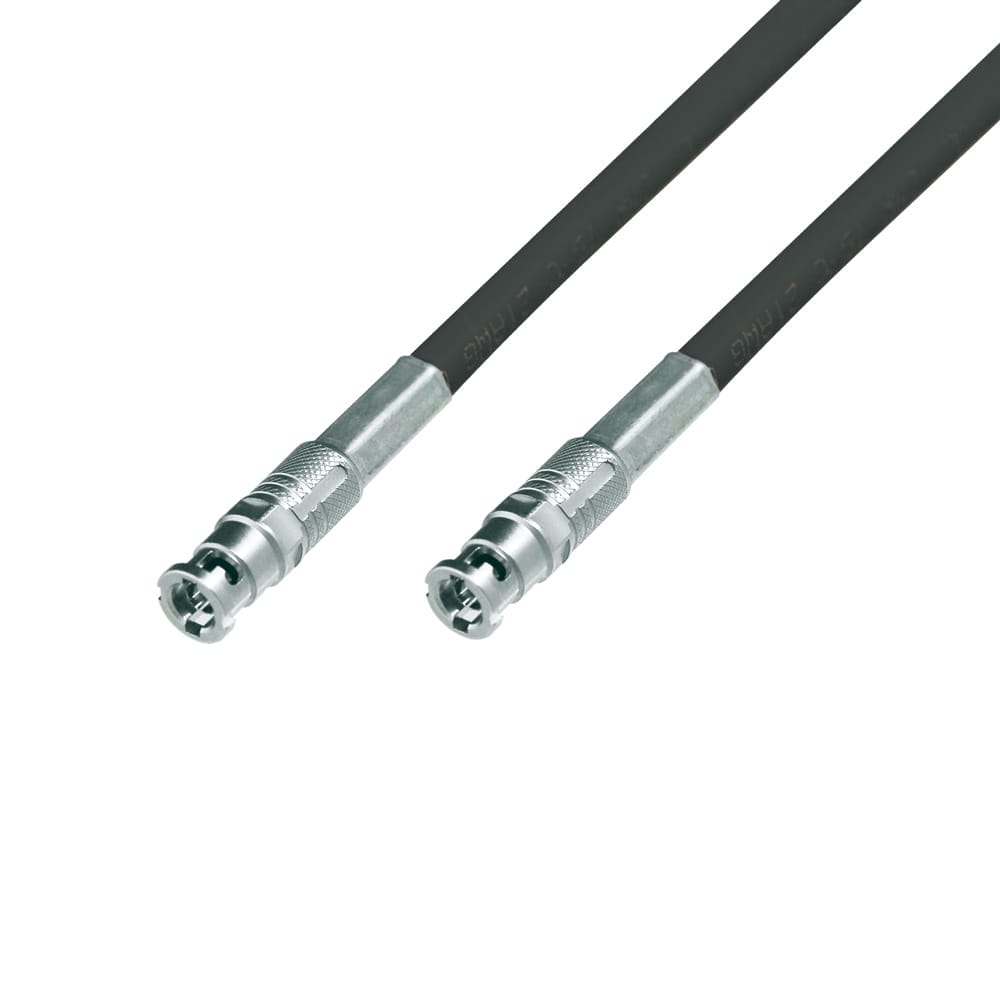

Micro BNC Cables
Micro BNC cables supporting 12G-SDI. The micro BNC is about half the size of standard BNC and is ideal for high-density mounting.
Key Features and Benefits
- True 75 ohm Micro BNC connectors
- 75 ohm Micro BNC to BNC crimp cable assemblies are available.
- Extraction tool BET-D/H (sold separately) is useful in places where connectors are crowded together.
Note 1: The length includes the connector length.
Note 2: Custom length available. Contact for the details.
Micro BNC CablesCrimp
Type | Model | Length(m) |
|---|---|---|
Micro BNC (M) - Micro BNC (M)12G-SDI  Color : Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Grey, White, Pink | DM2.5HDC005A | 0.5 |
DM2.5HDC01A | 1 | |
DM2.5HDC015A | 1.5 | |
DM2.5HDC02A | 2 | |
DM2.5HDC03A | 3 | |
Micro BNC (M)- BNC (M)
Color : Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Grey, White, Pink | DM2.5HDC005EA-BP | 0.5 |
DM2.5HDC01EA-BP | 1 | |
DM2.5HDC015EA-BP | 1.5 | |
DM2.5HDC02EA-BP | 2 | |
DM2.5HDC03EA-BP | 3 | |
Micor BNC (M)- BNC (F)12G-SDI
Color : Black, Brown, Red, Yellow, Green, Blue, Purple | DM2.5HWSC002EA-BJ | 0.2 |
Micro BNC Cables12G-SDICrimp
Type | Model | Length(m) |
|---|---|---|
Micro BNC (M)- Micor BNC (M)
Color : Black, Brown, Green, Purple | DM3.3UHDC03A | 3 |
DM3.3UHDC05A | 5 | |
Micor BNC (M)- BNC (M)
Color : Black, Brown, Green, Purple | DM3.3UHDC03EA-BP | 3 |
DM3.3UHDC05EA-BP | 5 |
Key Features and Benefits / Micro BNC Series
- Specially designed for 12G-SDI
- As handy as conventional coaxial cable.
- Designed for fixed installation.
