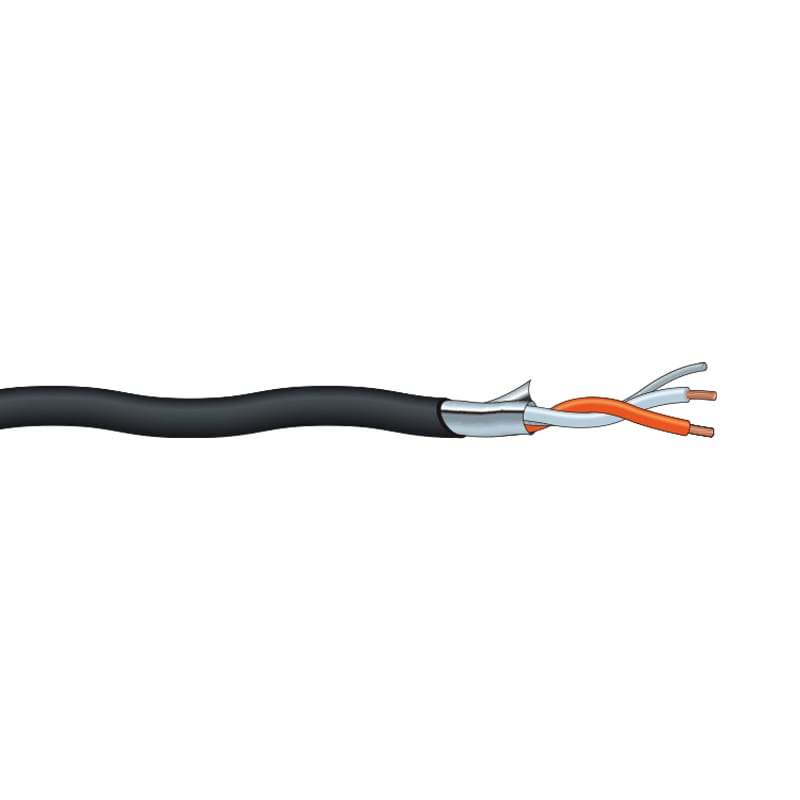

Two-Conductor Shielded Cables (Single)
2-conductor microphone cable for general purpose audio applications.
Key Features and Benefits
- 2-conductor style construction.
- Flexible and Slim.
- Ideal for internal rack wiring.
- Cross Linked PE Insulation.
Aluminum Foil Shield
| Type | Model | Composition | Electrical characteristics | |||||||
| Nom. O.D | Weight | No. of cond. | Cross sec area (AWG) and cond. comp. | Twist pitch | Cond. D.C.R. | Shield D.C.R. | Nom cap.* | Nom cap.** | ||
| mm | kg/100m | mm2/(AWG) Q’ty/mm | mm | ohm/100m | ohm/100m | pF/m | pF/m | |||
 Jacket colours: gray, black | L-2B2AT | 3.2 | 1.3 | 2 | 0.18(25) 16/0.12A | 25 | 10.5 | - | 66 | 120 |
 Jacket color: gray | L-2B2AL | 3.2 | 1.2 | 2 | 0.18(25) 7/0.18TA Overall tin coated | 20 | 11.3 | - | - | - |
 Jacket colors: gray, black, sepla | L-2E5AT | 5.0 | 4.0 | 2 | 0.31(23) 12/0.18A | 30 | 6.2 | - | 68 | 140 |
 Jacket color: gray | L-2E5AL | 5.0 | 3.7 | 2 | 0.29(23) 7/0.23TA Overall tin coated | 30 | 6.8 | - | - | - |
*Capacitance between conductors
**Capacitance between conductor and shield.

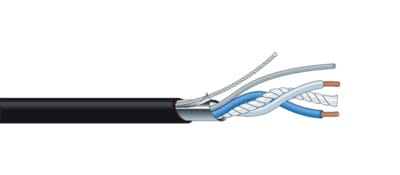

Key Features of L-2B2AT, L-2E5AT
- Ideal for internal rack wiring.
- Drain wire included.
- The L-2E5AT contains the Tetoron cable filler reinforcement material.

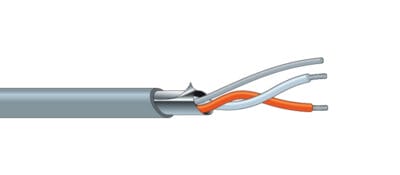

Key Features of L-2B2AL, L-2E5AL
- Cables for connecting devices with which wrapping tools can be used.
- Drain wire included.
Braided Shield
| Type | Model | Composition | Electrical characteristics | ||||||||
| Nom. O.D | Weight | No. of cond. | Cross sec area (AWG) and cond. comp. | Twist pitch | Shield coverage (braid) | Cond. D.C.R. | Shield D.C.R. | Nom cap.* | Nom cap.** | ||
| mm | kg/100m | mm2/(AWG) Q’ty/mm | mm | % | ohm/100m | ohm/100m | pF/m | pF/m | |||
 Jacket color for L-2T2S: black, red, orange, yellow, blue, gray L-2E5: black | L-2T2S | 6.0 | 4.6 | 2 | 0.30(23) 60/0.08A | 20 | 94% | 6.5 | 3.1 | 60 | 106 |
| L-2E5 | 4.6 | 3.0 | 2 | 0.15(26) 30/0.08A | 18 | 97% | 12.7 | 2.2 | 63 | 117 | |
*Capacitance between conductors
**Capacitance between conductor and shield.

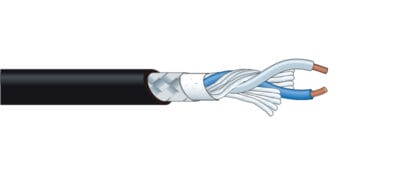

Key Features of L-2T2S, L-2E5
- Braid coverage of 94% and above provides dense shielding that blocks out electromagnetic noise.
- L-2T2S consists of 60 ultra-fine 0.08 mm strands (30 for L-2E5) in a stranded format that offers excellent durability.
- Highly pliable and durable PVC used for jacket. (Brittle temp. -49°C)
Spiral Shield
| Type | Model | Composition | Electrical characteristics | ||||||||
| Nom. O.D | Weight | No. of cond. | Cross sec area (AWG) and cond. comp. | Twist pitch | Shield coverage (braid) | Cond. D.C.R. | Shield D.C.R. | Nom cap.* | Nom cap.** | ||
| mm | kg/100m | mm2/(AWG) Q’ty/mm | mm | % | ohm/100m | ohm/100m | pF/m | pF/m | |||
 Jacket color: black | MS202 | 2.8 | 1.4 | 2 | 0.18(25) 1/0.18TA + 30/0.08TA | 25 | 91% (spiral) | 11.3 | 3.2 | 74 | 145 |
 Jacket color: gray | MS203 | 3.5 | 2.1 | 2 | 0.31(23) 12/0.18TA | 30 | 91% (spiral) | 6.5 | 2.3 | - | - |
*Capacitance between conductors
**Capacitance between conductor and shield.

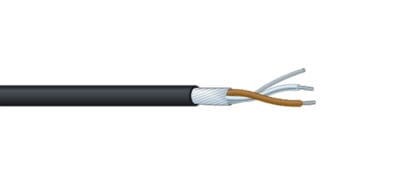

Key Features of MS202
- Ideal for analog audio internal rack wiring.
- Composite conductors with 1 of 0.18 mm and 30 of 0.08 mm strands.
- Drain wire included.

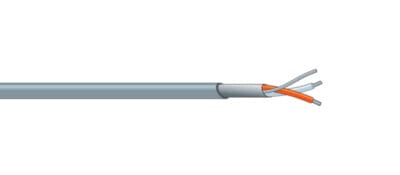

Key Features of MS203
- Ideal for internal rack wiring.
- Drain wire included.
