12G-75Ω Coaxial Cables – Ultra Coax
Analog to digital. HD to UHD. Canare 75 ohm coaxial cable series expands the range of choices for any kind of video formats
Key Features and Benefits
- Specially designed for 12G-SDI
- The max. transmission distance of 4K UHD over L-5.5CUHD single link able to reach 100 m or longer*
*Depending on receiving equipment. - As handy as conventional coaxial cables
- Copper foil and high-density tinned copper braided shielding.
- Highly-foamed multi-layer PE insulation
| Type | Model | Nom. O.D | Weight | Inner cond. | Insulation | Outer conductors | Inner cond. resist. | Outer cond. resist. | Static capacity | Charac- teristic impedance | Attenu- ation |
||
| Comp. | O.D | O.D | Foil | Braid comp. (coverage) |
|||||||||
| mm | kg/100m | (AWG) Q'ty/mm | mm | mm | mm/ends/ carriers | ohm/ km | ohm/ km | pF/m | ohm | dB/100m (6 GHz) |
|||

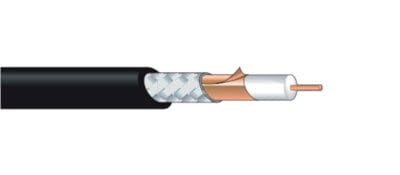

 Jacket colors: black and others | L-3.3CUHD | 5.5 | 4.1 | (21) 1/0.75A | 0.75 | 3.3 | (Cu) | 0.12TA/8/16 (92%) | 41.4 | 14.9 | 55 | 75 | 68.5 |
| L-5.5CUHD | 7.7 | 7.1 | (16) 1/1.35A | 1.35 | 5.55 | (Cu) | 0.12TA/8/24 (91%) | 12.8 | 10.3 | 52 | 75 | 39.1 | |
| L-8CUHD | 11.1 | 14.1 | (13) 1/2.00A | 2.00 | 8.26 | (Cu) | 0.16TA/8/24 (90%) | 5.8 | 6.3 | 52 | 75 | 27.9 | |
Key Features of L-CUHD Series
- Specially designed for 12G-SDI
- The max. transmission distance of 4K UHD over L-5.5CUHD single link able to reach 100 m or longer*
*Depending on receiving equipment. - As handy as conventional coaxial cables
- Copper foil and high-density tinned copper braided shielding
- Highly-foamed multi-layer PE insulation
Note 1: Designed for fixed installation, please avoid repeated bending or external pressure.
Note 2: Cable strippers (TS100 series) cannot be used for L-5.5CUHD and L-8CUHD.
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
L-3.3CUHD ,L-5.5CUHD ,L-8CUHD |
|---|
