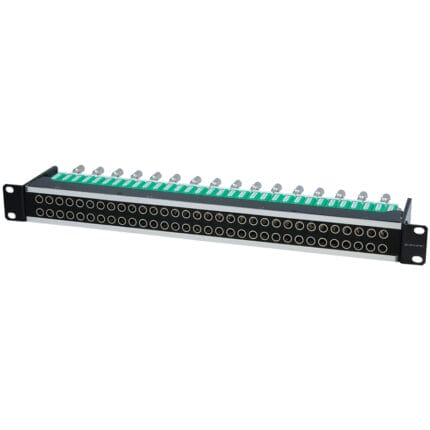

75 ohm Staggered Video Patchbays
32-across 12G-SDI video patching solutions: newly upgraded staggered dual video jacks, 2×32 1RU/1.5RU/2RU patchbays, patch cords, and accessories. This reliable product line meets and exceeds SMPTE ST 2082-1 with low return loss. 1.5RU/2RU with high visibility designation strips.
Key Features and Benefits
- 12G-SDI: SMPTE ST 2082-1 compliant.
- 32 channels of I/O into 1 RU, 1.5 RU or 2 RU.
- Staggered BNC rear jacks with vertical stud position.
Improved visibility of the position mark on the BNC plug body. - Dust-proof shutter.
- Suitable patch cord: Canare Micro patch cord ‘MCVPC**’.
- Included a sheet of channel designator for easy identification.
- Can be recessed 25 mm(*)
* Option: 1 RU can be recessed 50/75 mm by changing the mounting brackets to ‘M-MA1U02A(2)’.
Note 1: Be sure to use with Canare Micro Video Patch Cords.
Note 2: Not compatible with other plug/patch cables.
Note 3: 32MCKA series cannot use with dual video jack ‘MCVJK-STW/STS’. Be sure to use with ‘MCVJKA-STW/S’.
75 ohm Staggered Video Patchbays 12G-SDI
| Type | Model | Panel Size | Loaded Video Jacks | Standard package |
 | 32MCKA-ST | 1 RU | 32 x MCVJKA-STW | 1 pc |
| 32MCKA-STS | 32 x MCVJKA-STS | |||
| 32MCKA-ST-1.5U | 1.5 RU | 32 x MCVJKA-STW | ||
| 32MCKA-STS-1.5U | 32 x MCVJKA-STS | |||
| 32MCKA-ST-2U | 2 RU | 32 x MCVJKA-STW | ||
| 32MCKA-STS-2U | 32 x MCVJKA-STS |
32MCKA-ST / 32MCKA-STS

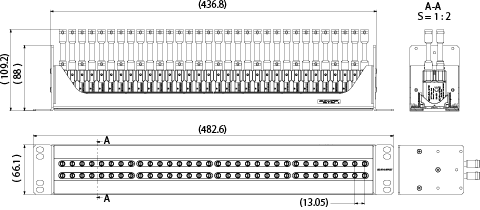

32MCKA-ST-1.5U / 32MCKA-STS-1.5U
32MCKA-ST-2U / 32MCKA-STS-2U
M-MA1U02A(2)
Dual Video Jacks
| Model | Description | Rear Jacks | Standard package |
| MCVJKA-STW | Normal through, Staggered rear jacks | BNC | 1 pc |
| MCVJKA-STS | Straight through, Staggered rear jacks | BNC | 1 pc |
Description
