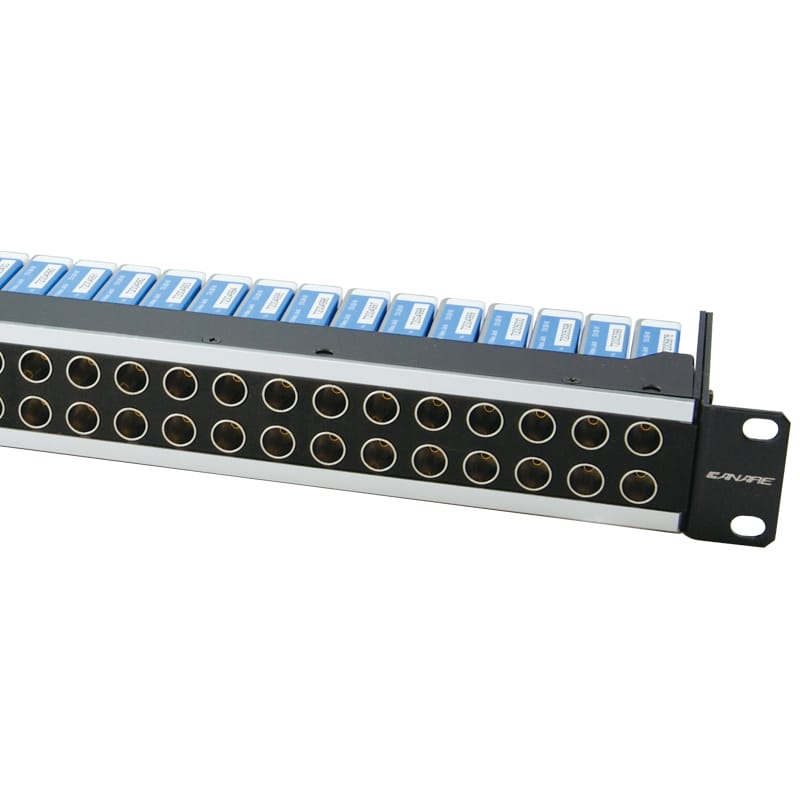

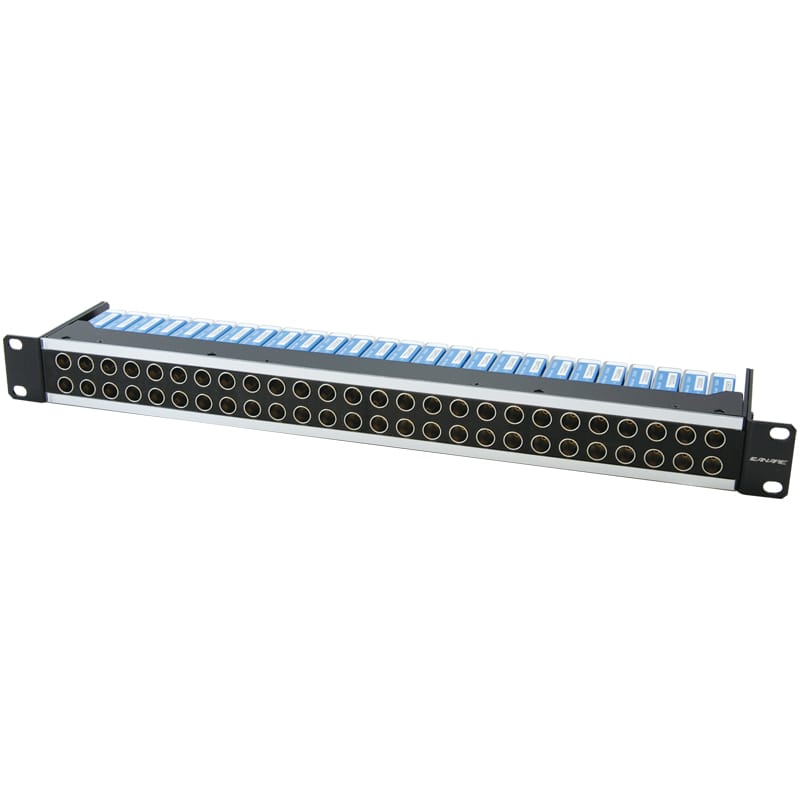

75 ohm Video Patchbay
3G-ready HD-SDI video patchbays featuring Canare’s uniquely-developed rotary switches.
Key Features and Benefits
- Rotary Switch Technology with dual-contact construction
- Can be recessed 25 mm.
- Wide designation strip (2 RU type).
- Lightweight aluminum alloy video jacks.
Note : Be sure to use with WECO Video Patch Cords.
75 ohm Patchbays
| Type | Model | Panel Size | Loaded Video Jacks | Standard package |
 | 20DV | 1 RU | 20 x DVJB-W | 1 pc |
| 24DV | 1 RU | 24 x DVJB-W | 1 pc | |
| 26DV | 1 RU | 26 x DVJB-W | 1 pc | |
| 20DVS | 1 RU | 20 x DVJB-S | 1 pc | |
| 24DVS | 1 RU | 24 x DVJB-S | 1 pc | |
| 26DVS | 1 RU | 26 x DVJB-S | 1 pc | |
| 20DV-2U | 2 RU | 20 x DVJB-W | 1 pc | |
| 24DV-2U | 2 RU | 24 x DVJB-W | 1 pc | |
| 26DV-2U | 2 RU | 26 x DVJB-W | 1 pc | |
| 20DVS-2U | 2 RU | 20 x DVJB-S | 1 pc | |
| 24DVS-2U | 2 RU | 24 x DVJB-S | 1 pc | |
| 26DVS-2U | 2 RU | 26 x DVJB-S | 1 pc |
Dual Video Jacks
| Type | Model | Description | Rear Jacks | Standard package |

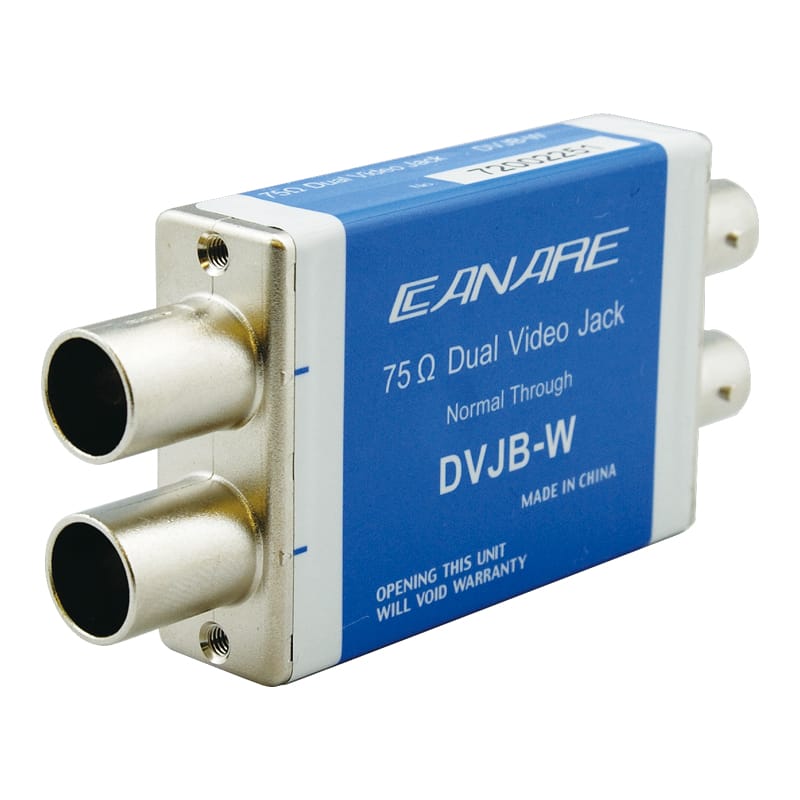

 | DVJB-W | Normal through | BNC | 1 pc |

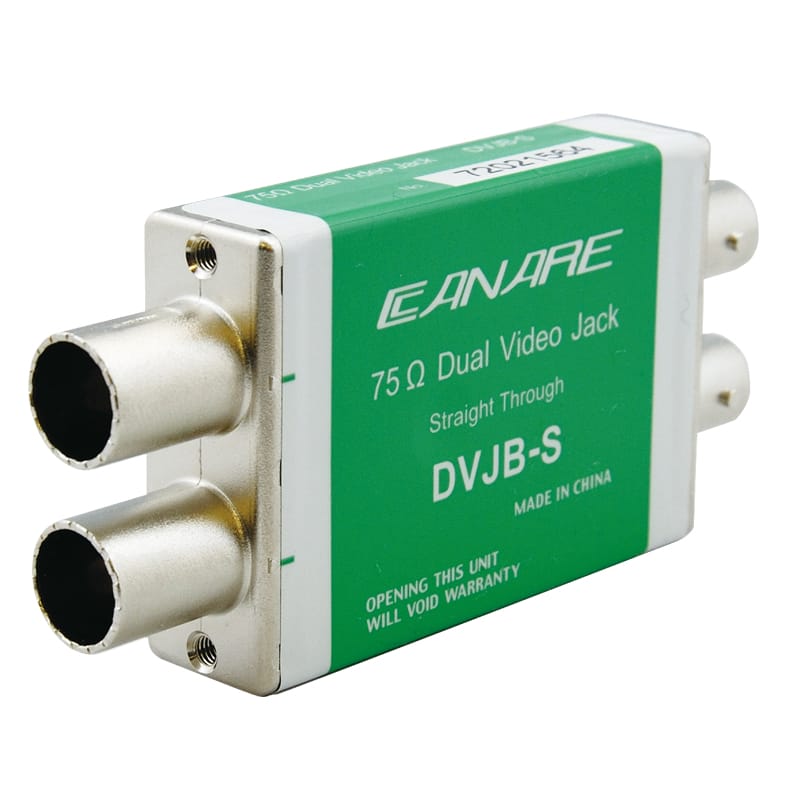

 | DVJB-S | Straight through | BNC | 1 pc |
