R300-CN
R300-BN
Cable Reels

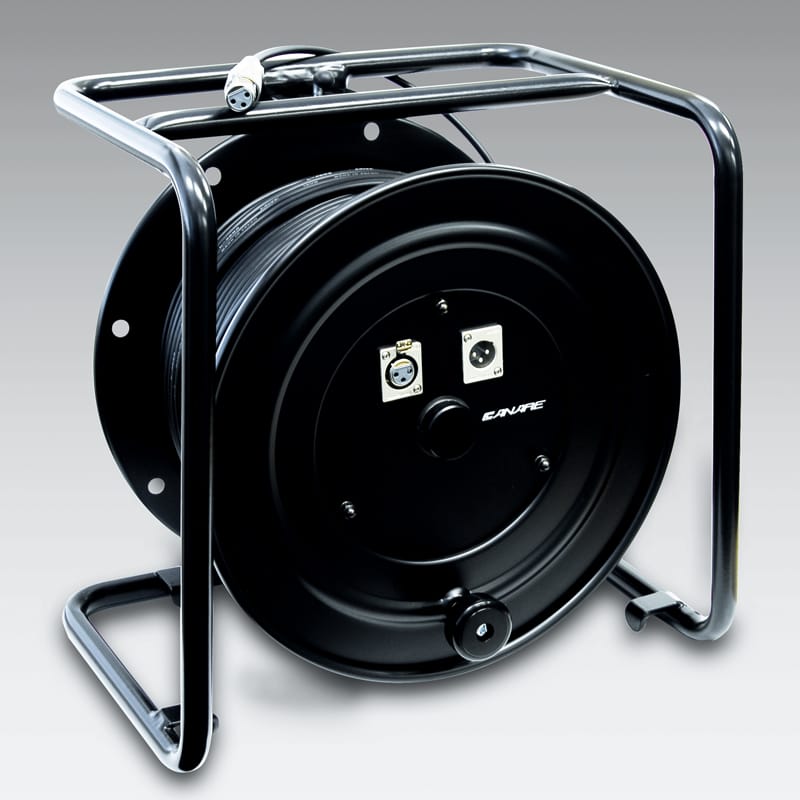

Dependable cable reels Dependable steel reels with 3-speed brake
Key Features and Benefits
- 3-speed brake: lock/soft/free
- Tubular steel E brace construction
- Oiless bearing
- Parallel wired M & F XLR3s for genderless connection (R300-CN)
Cable Reels
| Model | Flange Dim | Description | Weight | Feature |
| R300-S | 300mm | with auxiliary reel | 4.6 kg | stackable |
| R380-S | 380mm | 8.3 kg | w/casters | |
| R460-S | 460 mm | 9.9 kg | w/casters | |
| R300 | 300 mm | cable hole on hub (no exit) | 4.3 kg | stackable |
| R300-L | 300 mm | connector trench on hub (no holes) | 4.4 kg | stackable |
| R300-CN | 300 mm | XLR3 receptacles on hub and flange | 4.6 kg | stackable |
| R300-BN | 300 mm | BNC receptacles on hub and flange | 4.6 kg | stackable |
Wiring
Reels with Cable Assemblies
| Model | Description | Weight | |
| Cable reel | Cable Assemblies | ||
| CR100-CN | R300-CN |  | 9.6 kg |
| CR100-S | R300-S | 9.6 kg | |
| CR90-BN | R300-BN |  | 10.5 kg |
Dimensions
R460-S
R300
(Connectors can be attached to
the front panel)

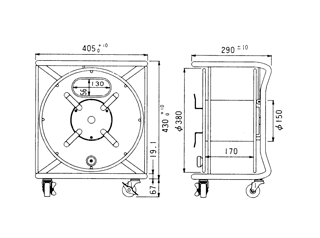

R380-S
R300-L
(Connectors can be attached to
the front panel and the drum)
R300-S
R300-CN
(R300-BN comes with BNC recetacles)
Cable winding length reference chart
