32ch
24ch
16ch
8-12ch

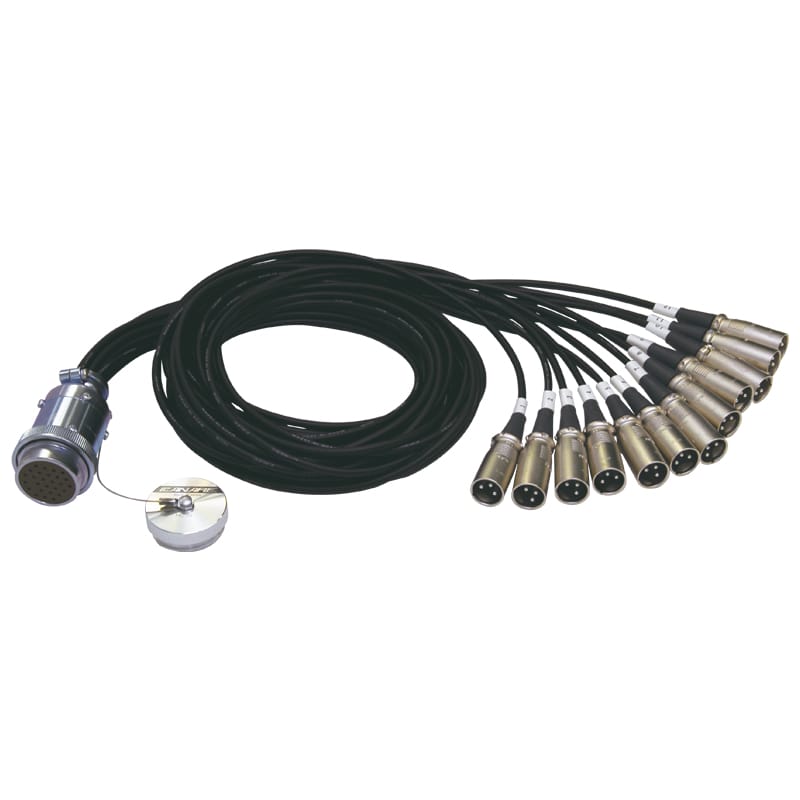

Fantail
Pre-assembled using Canare Star Quad L-4E6S/5C microphone cable wired to ITT Cannon XLR3 and multipin connectors.
Key Features and Benefits
- 8, 12, 16, 24, and 32 channels.
- Bend resistant cable design.
- Ideal for connecting to a PA mixer or multi-channel audio interface.
- Fitted with a large, sliding number ring for quick identification.
- Dust caps are included on multipin connector.
Fantail
| Type | Model | Ch | Cable | Connecter (Upper: XLR Connector Lower: Multipin Connector) | Length (m) | Weight (kg) |
 | 8S1N2 | 8 | L-4E6S x 8 (black) | XLR3-11C x 8 NK27-22C-3/4-R x 1 | 1.5 | 1.1 |
 | 8S2N1 | XLR3-12C x 8 NK27-21C-3/4-R x 1 | 1.0 | |||
 | 12S1N2 | 12 | L-4E5C x 12 (black) | XLR3-11C x 12 NK27-22C-3/4-R x 1 | 1.5 | 1.4 |
 | 12S2N1 | XLR3-12C x 12 NK27-21C-3/4-R x 1 | 1.3 | |||
 | 16S1F2 | 16 | L-4E5C x 16 (black) | XLR3-11C x 16 FK37-22C-7/8-R x 1 | 1.5 | 1.9 |
 | 16S2F1 | XLR3-12C x 16 FK37-21C-7/8-R x 1 | 1.7 | |||
 | 24S1MS2 | 24 | L-4E5C x 24 (black) | XLR3-11C x 24 D/MS3101A32A-10P x 1 | 2.0 | 2.8 |
 | 24S2MS2 | XLR3-12C x 24 D/MS3101A32A-10P x 1 | 2.5 | |||
 | 32S1MS2 | 32 | L-4E5C x 32 (black) | XLR3-11C x 32 D/MS3101A36-73P x 1 | 2.0 | 3.7 |
 | 32S2MS2 | XLR3-12C x 32 D/MS3101A36-73P x 1 | 3.3 |
Multichannel Connector Pin Assignments
| Ch No. | Cable Unit Identification | 32ch | 24ch | 16ch | 8ch / 12ch | |||||||||||||||
| L-4E3 | M202 | D/MS3102A36-73 D/MS3106B36-73 | D/MS3102A32A-10 D/MS3106B32A-10 | FK37 | NK27 | |||||||||||||||
| Spiral Marker Color | Insulator Color | |||||||||||||||||||
| Identifying Color | Common identifying Color | HOT | COLD | HOT | COLD | HOT | COLD | HOT | COLD | |||||||||||
| 1 | RED | RED | WHT | A | B | A | B | 1 | 2 | 1 | 3 | |||||||||
| 2 | BLU | BLU | | | C | D | C | D | 3 | 4 | 4 | 5 | |||||||||
| 3 | YEL | YEL | | | F | H | F | G | 5 | 6 | 6 | 7 | |||||||||
| 4 | GRN | GRN | | | J | K | H | J | 8 | 9 | 8 | 9 | |||||||||
| 5 | BRN | BRN | | | L | M | K | L | 10 | 11 | 11 | 12 | |||||||||
| 6 | N/A | GRY | â–¼ | N | P | N | O | 12 | 13 | 13 | 14 | |||||||||
| 7 | BLU • BLK | BLU | BLK | R | S | P | R | 14 | 15 | 15 | 16 | |||||||||
| 8 | YEL • BLK | YEL | | | T | U | S | T | 16 | 17 | 17 | 18 | |||||||||
| 9 | GRN • BLK | GRN | | | V | W | U | V | 21 | 22 | 19 | 20 | |||||||||
| 10 | BRN • BLK | BRN | | | Y | Z | X | Y | 23 | 24 | 22 | 23 | |||||||||
| 11 | BLK | GRY | â–¼ | a | b | Z | a | 25 | 26 | 24 | 25 | |||||||||
| 12 | BLU • ORN | BLU | ORN | c | d | b | c | 27 | 28 | 26 | 27 | |||||||||
| 13 | YEL • ORN | YEL | | | f | g | d | e | 29 | 30 | SHIELD | ||||||||||
| 14 | GRN • ORN | GRN | | | h | i | g | h | 32 | 33 | 10 | ||||||||||
| 15 | BRN • ORN | BRN | | | j | k | j | k | 34 | 35 | |||||||||||
| 16 | ORN | GRY | â–¼ | m | n | m | n | 36 | 37 | |||||||||||
| 17 | BLU • PNK | BLU | PNK | u | v | p | q | SHIELD | ||||||||||||
| 18 | YEL • PNK | YEL | | | w | x | s | t | 19 | ||||||||||||
| 19 | GRN • PNK | GRN | | | y | z | u | v | |||||||||||||
| 20 | BRN • PNK | BRN | | | AA | AB | w | x | |||||||||||||
| 21 | PNK | GRY | â–¼ | AC | AD | AB | z | |||||||||||||
| 22 | BLU • WHT | BLU | RED | AE | AF | AA | AC | |||||||||||||
| 23 | YEL • WHT | YEL | | | AH | AJ | AD | AF | |||||||||||||
| 24 | GRN • WHT | GRN | | | AL | AM | AG | AE | |||||||||||||
| 25 | - | BRN | | | AN | AP | SHIELD | ||||||||||||||
| 26 | - | GRY | â–¼ | AR | AS | E | ||||||||||||||
| 27 | - | YEL | BLU | AT | AU | |||||||||||||||
| 28 | - | GRN | | | AV | AW | |||||||||||||||
| 29 | - | BRN | â–¼ | AX | AY | |||||||||||||||
| 30 | - | GRN | YEL | AZ | BA | |||||||||||||||
| 31 | - | BRN | | | BC | BD | |||||||||||||||
| 32 | - | GRY | â–¼ | BE | BF | |||||||||||||||
| SHIELD | ||||||||||||||||||||
| ||||||||||||||||||||
Connection Method
L-4E3 Types:
Identify the channel number by the color of the spiral marker on the inner jacket (gray). The unit is 4-core construction and the insulator colors are blue, blue, white, and white. Connect these with the same colored cores, so that the blue cores are connected to Hot and the white cores to Cold.
M202 Types:
The unit is 2-core construction, with the channel number identified by the insulator color (a combination of the identifying color and common identifying color). Connect the identifying color core to Hot, and the common identifying color core to Cold.
Connections to XLR Connectors
| Polarity | HOT | COLD | SHIELD |
|---|---|---|---|
| Pin No. | 2 | 3 | 1 |
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
12S1N2 ,12S2N1 ,16S1F2 ,16S2F1 ,24S1MS2 ,24S2MS2 ,32S1MS2 ,32S2MS2 ,8S1N2 ,8S2N1 |
|---|
Related products

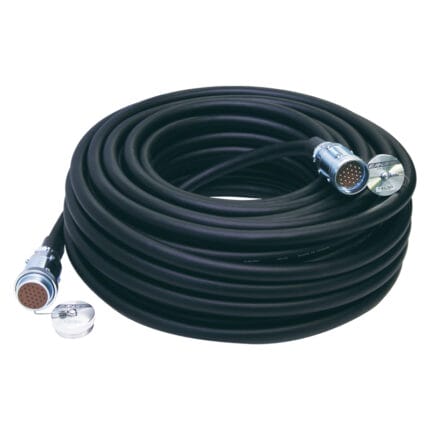

Snake Trunks
