75 ohm BNC Connectors

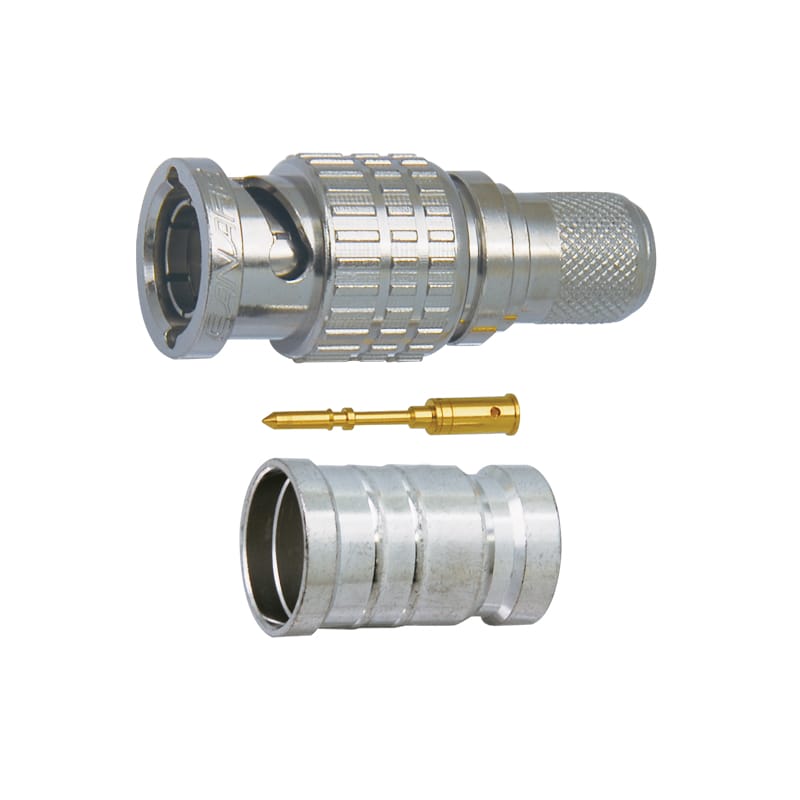

Canare added the new BCP-D series for 12G-SDI. SMPTE ST 2082-1 fully compliant connector makes UHD solutions as simple as existing SDI systems. The world’s highest quality BNC includes BCP-B for 3G-SDI, BCP-A/C for up to HD.
Key Features and Benefits
- SMPTE 424M & 292M Compliant.
- True 75 ohm construction Crimp Pin & Sleeve.
- High performance of 1.1 or less VSWR up to 3GHz.
- Elongated Body for better hand grip.
- Gold plated center pins ‘snap’ into place.
- Connector Body has been die-cast, achieving a lower price with higher performance.
- Easy Assembly using Canare Strip & Crimp Tools.
BCP-B Series Crimp Type
| Model | Suitable Cable | Center Pin | Sleeve | Boot | Die Set | Standard package | |
| Canare | Others | ||||||
| BCP-B25HD | L-2.5CHD, L-2.5CHLT | VDM230 | B11015E | BN7129 | CB02 | TCD-35CA | 20pcs / 100pcs |
| BCP-B25HW | L-2.5CHWS, V4-2.5CHW | - | B11015E | BN7143 | CB02 | TCD-35CA | 20pcs / 100pcs |
| BCP-B26 | - | 1855A, 1855P | B11014E | BN7029C | CB02 | TCD-35CA | 20pcs / 100pcs |
| BCP-B28 | - | 1855ENH,HD PRO 0.6/2.8 AF | B11015E | BN7052A | CB02 | TCD-35CA | 20pcs / 100pcs |
| BCP-B3F | L-3CFB, V*-3CFB | - | B11015E | BN7003A | CB03 | TCD-35CA | 20pcs / 100pcs |
| BCP-B31F | L-3CFW, V*-3CFW | - | B11015E | BN7015A | CB04 | TCD-4CA, TCD-451CA | 20pcs / 100pcs |
| BCP-B4F | L-4CHD, L-4CFB, V*-4CFB | 1505A, 1505ANH, VPM2000, HD PRO 0.8/3.7 AF | B11016E | BN7015A | CB04 | TCD-4CA, TCD-451CA | 20pcs / 100pcs |
| BCP-B45HW | L-4.5CHWS | 1694F | B11020D | BN7016 | CB05A | TCD-35CA | 20pcs / 100pcs |
| BCP-B53 | L-4.5CHD | 1694A | B11020D | BN7046 | CB05A | TCD-35CA | 20pcs / 100pcs |
| BCP-B56 | - | HD PRO 1.0/4.8 AF | B11020D | BN7046 | CB05A | TCD-35CA | 20pcs / 100pcs |
| BCP-B5F | L-5CFB, V*-5CFB | - | B11020D | B75004A | CB05A | TCD-5CF, TCD-55FA | 20pcs / 100pcs |
| BCP-B51F | L-5CFW, V*-5CFW | - | B11020D | B75004A | CB05A | TCD-5CF, TCD-55FA | 20pcs / 100pcs |
Key Features and Benefits
- Return Loss:@26.4dB@3GHz
Return loss
BCP-B5F
Note 1: Be sure to use Canare Crimp Tool.
Note 2: For crimping instructions, please refer to this page or the instruction manual.
Note 3: Position mark on the body makes it easier to check if the connector is locked.
Note 4: BCP-B series are specially designed for particular coax cables, and minimize return loss at until 3GHz.
BCP-A Series Crimp Type
| Model | Suitable Cable | Center Pin | Sleeve | Boot | Die Set | Standard package | |
| Canare | Others | ||||||
| BCP-A25 | L-2.5C2V | - | BN1018A | BN7029C | CB02 | TCD-35CA | 20pcs / 100pcs |
| BCP-A25F | L-2.5CFB | 1855A, 8218, 1417B, 1418B | B11014E | BN7029C | CB02 | TCD-35CA | 20pcs / 100pcs |
| BCP-A3 | L-3C2VS, L-3C2V, V*-3C | - | B11014E | BN7003A | CB03 | TCD-35CA | 20pcs / 100pcs |
| BCP-A31 | L-3C2W | - | B11014E | BN7011 | CB04 | TCD-31C | 20pcs / 100pcs |
| BCP-A32 | - | 1506A, 1824A, 1825A, 1826A, 643948 | B11016E | BN7026A | CB03 | TCD-35CA | 20pcs / 100pcs |
| BCP-A3AHD | L-3C-AHD | - | B11016E | BN7003A | CB03 | TCD-35CA | 20pcs / 100pcs |
| BCP-A3F | L-3CFB, V*-3CFB | - | B11015E | BN7003A | CB03 | TCD-35CA | 20pcs / 100pcs |
| BCP-A4 | LV-61S | 8241, 8279, RG-59B/U | B11015E | BN7015A | CB04 | TCD-4CA, TCD-451CA | 20pcs / 100pcs |
| BCP-A42 | - | 1505F | B11016E | BN7011 | CB04 | TCD-31C | 20pcs / 100pcs |
| BCP-A4F | L-4CHD, L-4CFB, V*-4CFB | 1505A, 1505ANH, 8212, 8241F, 9167, 9259, 9659, VPM2000, HD PRO 0.8/3.7 AF | B11016E | BN7015A | CB04 | TCD-4CA, TCD-451CA | 20pcs / 100pcs |
| BCP-A5 | L-5C2VS, L-5C2V, V*-5C | - | B11016E | BN7016 | CB05A | TCD-35CA | 20pcs / 100pcs |
| BCP-A52 | L-5C2W | - | B11016E | BN7014 | - | TCD-451CA | 20pcs / 100pcs |
| BCP-A55 | - | 1695A, VSD2001TS | B11020D | BN7045A | CB04 | TCD-35CA | 20pcs / 100pcs |
| BCP-A5F | L-5CFB, V*-5CFB | - | B11020D | B75004A | CB05A | TCD-35CA | 20pcs / 100pcs |
| BCP-A77 | LV-77S | 8281F | B11016E | B75004A | CB05A | TCD-5CF, TCD-55FA | 20pcs / 100pcs |
| BCP-VA3 | V*-3C | - | B11014E | BN7052A | CB03 | TCD-35CA | 20pcs / 100pcs |
| BCP-VA5 | V*-5C | - | B11016E | BN7045A | CB05A | TCD-35CA | 20pcs / 100pcs |
Key Features and Benefits
- Return Loss:@26.4dB@2GHz、20.8dB@3GHz(*1)
- Canare crimp design ensures quick and reliable installation
- Gold plated “snap locks” center pin and beryllium copper outer contact.
- Elongated body design for stable finger grip.
- Position mark on the body makes it easier to check if the connector is locked.
Return loss
BCP-A3
Note 1: Be sure to use Canare Crimp Tool.
Note 2: For crimping instructions, please refer to this page or the instruction manual.
Note 3: Suitable Die Set for BCP-A5F is TCD-35CA; do not use TCD-5CF/TCD-55FA for BCP-A5F.
(*1): Excluding BCP-A25, BCP-A25F and BCP-A4
BCP-C Series Crimp Type
| Model | Suitable Cable | Center Pin | Sleeve | Boot | Die Set | Standard package | |
| Canare | Others | ||||||
| BCP-C1 | L-1.5C2VS, V*-1.5C | 83264, 83267 | Solder | BN7022 | CB01 | TCD-1DB | 20pcs / 100pcs |
| BCP-C5HD | L-5CHD | - | BN1139 | B75004A | CB05A | TCD-5HD | 20pcs / 100pcs |
| BCP-C6HD | L-6CHD | - | BN1083A | BN7074A | - | TCD-67HD | 20pcs / 100pcs |
| BCP-C71A | - | 7731A, 9064, 9292, 1617A, 9011 | BN1043A | BN7021A | - | TCD-7CA | 20pcs / 100pcs |
| BCP-C7FA | L-7CFB | - | BN1012B | BN7021A | - | TCD-7CA | 20pcs / 100pcs |
| BCP-C7HD | L-7CHD | - | BN1082A | BN7021A | - | TCD-67HD | 20pcs / 100pcs |
Key Features and Benefits
- Return Loss:@26.4dB@2GHz (*2)
Note 1: Be sure to use Canare Crimp Tool.
Note 2: For crimping instructions, please refer to this page or the instruction manual.
(*2): Excluding BCP-C1
