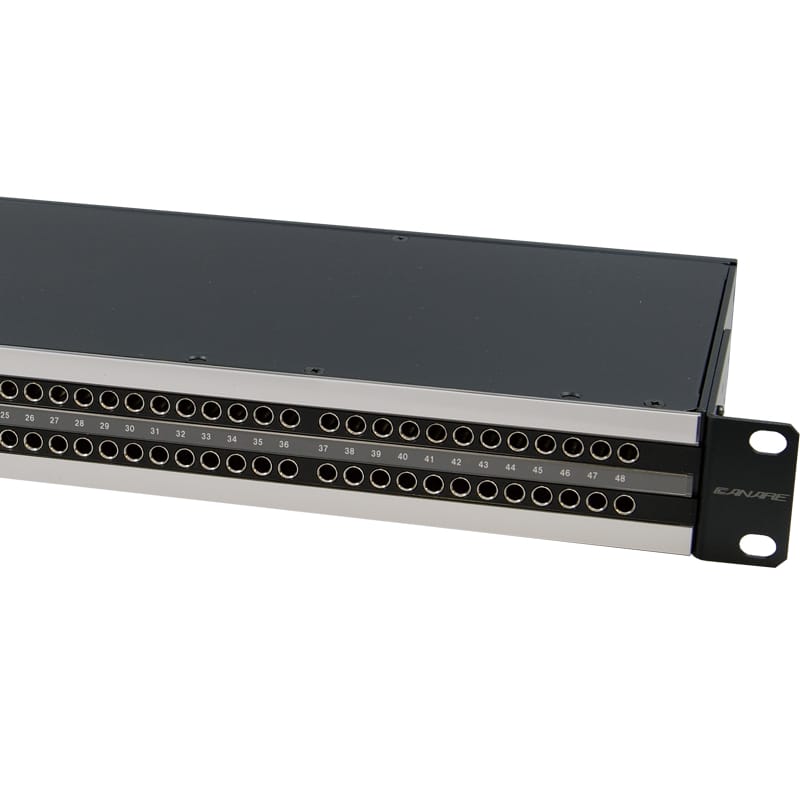

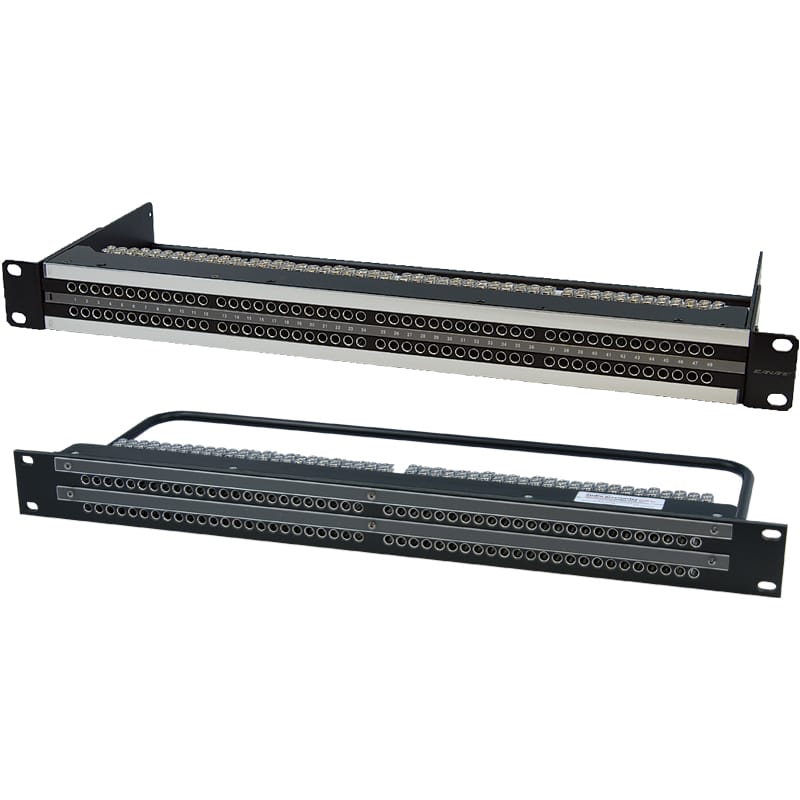

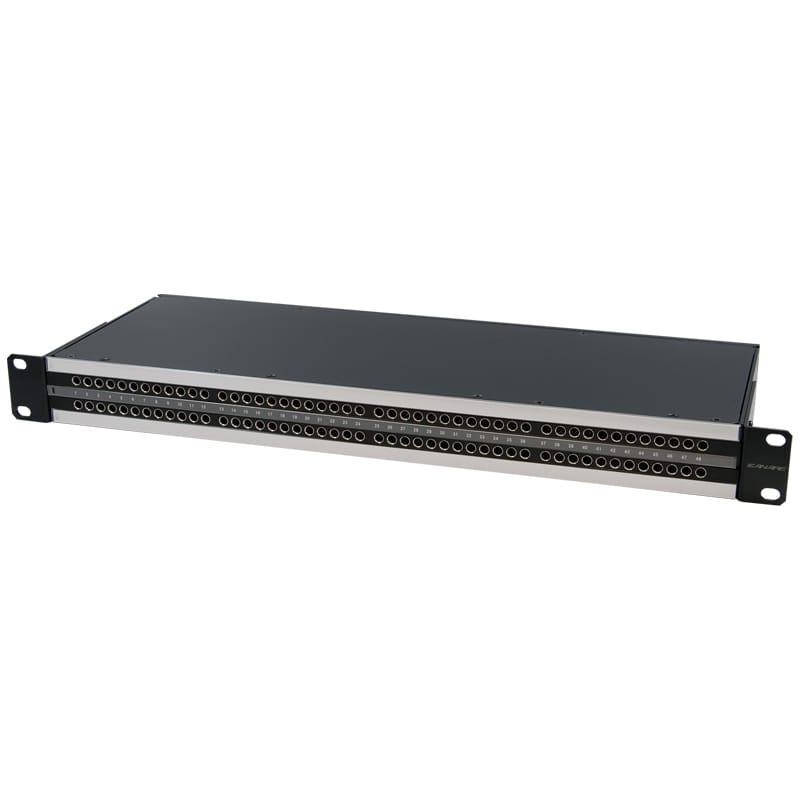

Bantam Patchbays
Our audio patchbay with capacity for 48 jacks per row.
Key Features and Benefits
- Broadcasting Stations, Recording Studios.
- Number of Holes and Rows.
1RU, 96 holes, 2 rows. - 481U patchbay can be recessed 25 mm by changing the screw positions on the mounting brackets.
- The gold alloy cross bar contact, which features a low faulty contact rate, is used for the jacks.
Bantam Patchbays
| Model | Description | Connector | Standard package |
| 481U-820AQ | 1U | 820AQ × 96 | 1 |
| 48-12A/820AQ/EIA | 1U | 820AQ × 96 | 1 |
Wired Box (Bantam Patchbays)
| Model | Panel Size | Connector | Standard package | |
| Front | Rear | |||
| 481U-WBF | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
| 481U-WBH | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
| 481U-WBW | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
| 481U-WBS | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
| 48WB-F | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
| 48WB-H | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
| 48WB-W | 1 RU | 820AQ × 96 | 90-602 × 4 | 1 |
Note 1: *481U-WB* can be recessed 25 mm
Note 2: *90-602 connector is identical to ELCO 00-8016-090-∗∗∗-702V connector
Wired Panels (Bantam Patchbays)

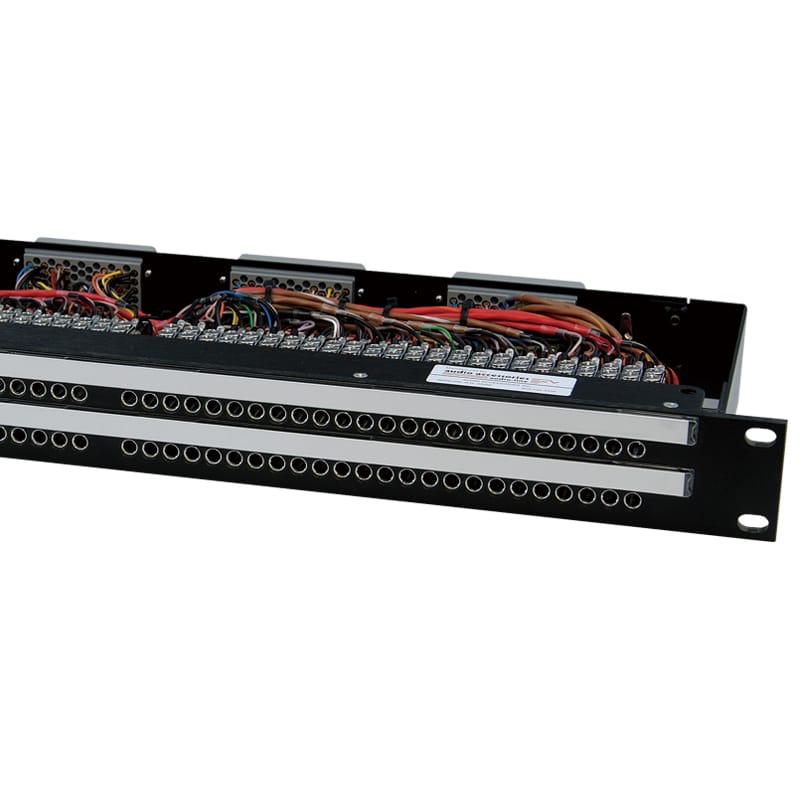

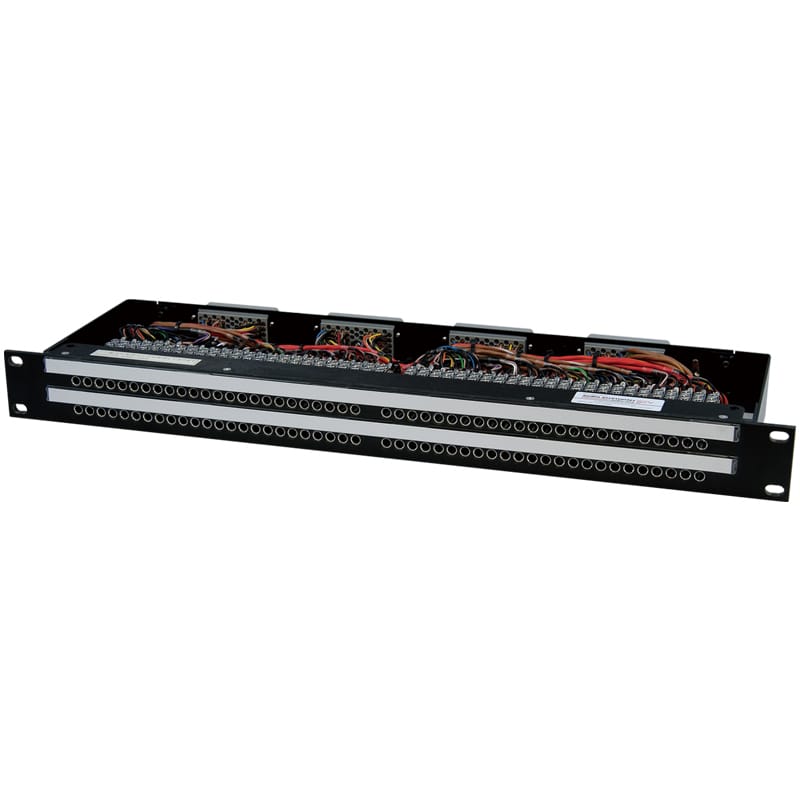

Bantam wired box 481U-WB*

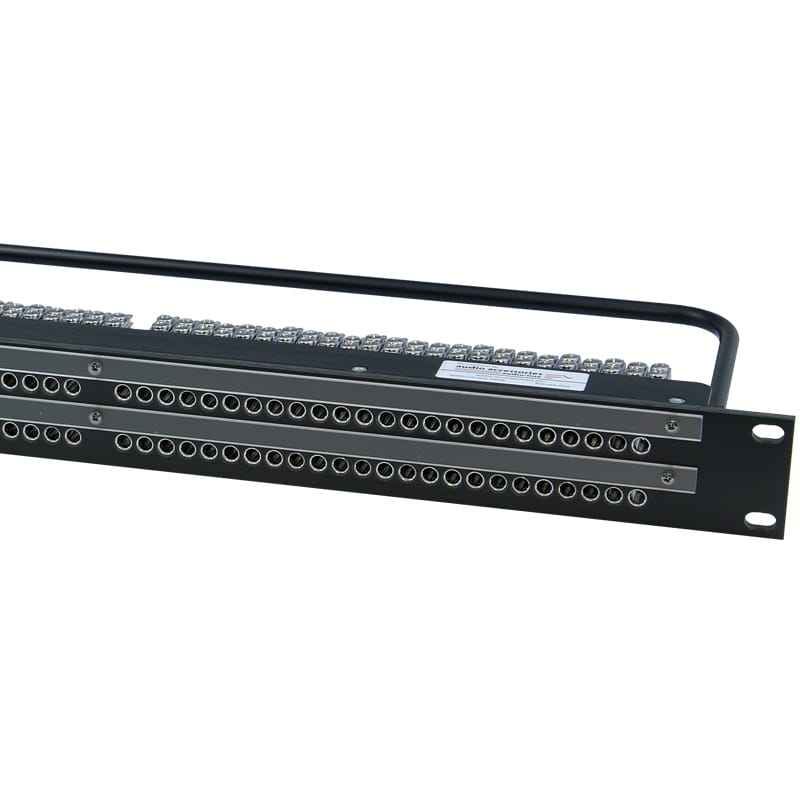

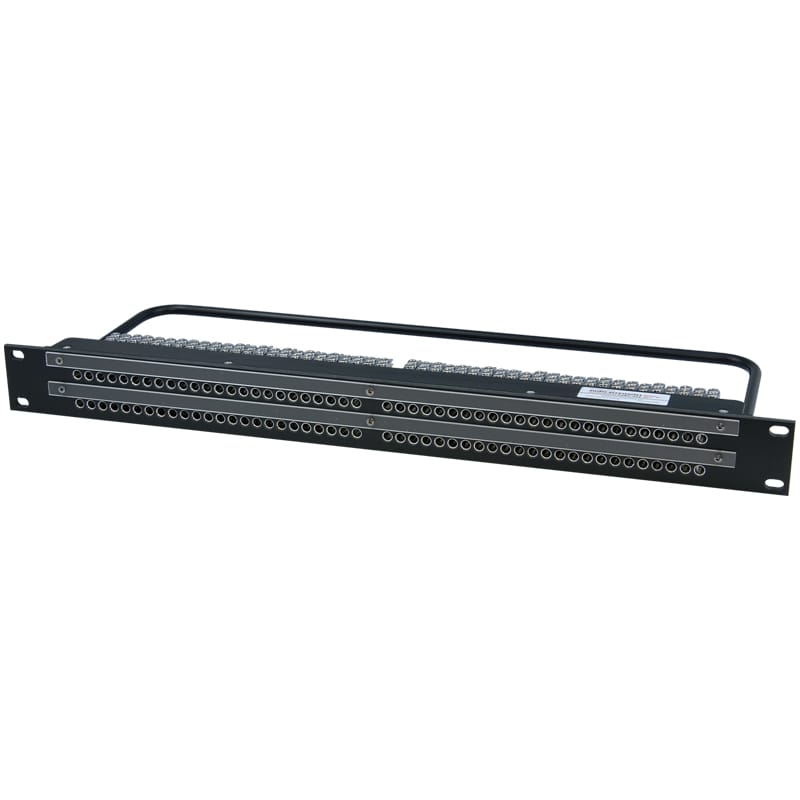

Bantam wired box 48WB-*
| Model | Panel 1 | Panel 2 | Standard package | ||
| Size | Connector | Size | Connector | ||
| 48XP-F | 1 RU | 820AQ × 96 | 3 RU x 2 | XLR3-31F77 x 48 XLR3-32F77 x 48 | 1 |
| 48XP-H | 1 RU | 820AQ × 96 | 3 RU x 2 | XLR3-31F77 x 48 XLR3-32F77 x 48 | 1 |
| 48XP-W | 1 RU | 820AQ × 96 | 3 RU x 2 | XLR3-31F77 x 48 XLR3-32F77 x 48 | 1 |
Note 1: *Cables are 2 meters in length.
