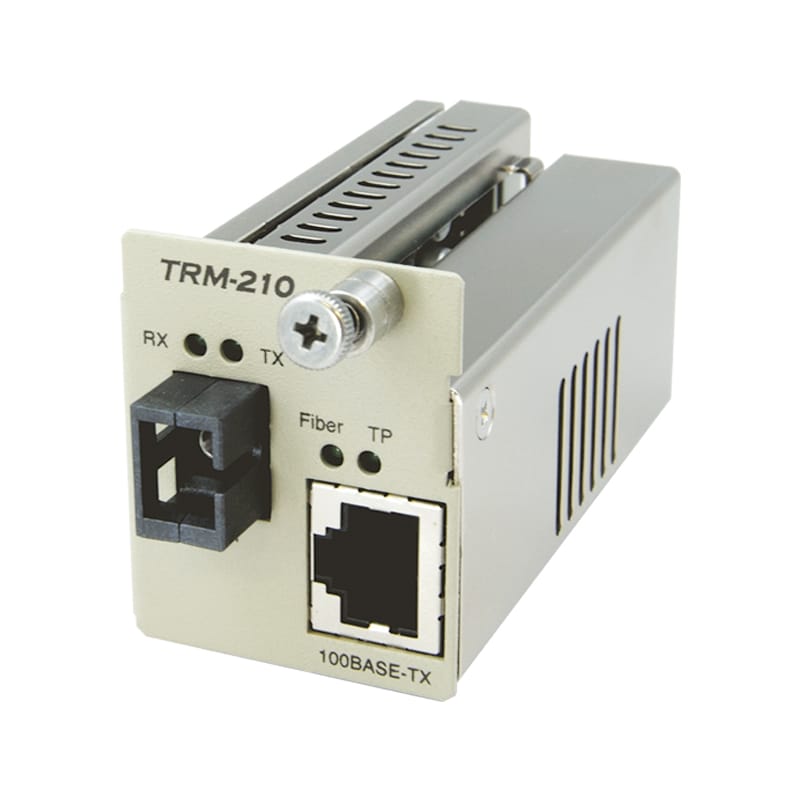

100BASE-TX Optical Converters
Media converters for Fast Ethernet 100BASE-TX*
*No backwards compatibility with other Ethernet standards such as 10BASE-T.
Key Features and Benefits
- Auto MDI/MDX
- Extends communications up to 30 km (condition: line loss 0.5 dB/km)
- Bi-directional optical communication
100BASE-TX Optical Converters
| Model | Wavelength | Occupancy | Remark |
| TRM-210 | 1310 nm | 2 Slots | Work with TRM-211. |
| TRM-211 | 1550nm | Work with TRM-210. | |
| TRM-210A-47 | 1471nm for CWDM | Work with TRM-210A-** of a different wavelength (*1) | |
| TRM-210A-49 | 1491nm for CWDM | ||
| TRM-210A-51 | 1511nm for CWDM | ||
| TRM-210A-53 | 1531nm for CWDM | ||
| TRM-210A-55 | 1551nm for CWDM | ||
| TRM-210A-57 | 1571nm for CWDM | ||
| TRM-210A-59 | 1591nm for CWDM | ||
| TRM-210A-61 | 1611nm for CWDM |
Block Diagram of TRM-210 and TRM-211
Specifications
| Model | TRM-210, TRM-211 | TRM-210A-** |
| Fiber Type | Single Mode | |
| Optic I/O Connector | 1 x SC | 2 x LC |
| Ethernet I/O Connector | 1 x RJ45 | |
| Dimensions | 35.5 x 43.4 x 76.2 mm | |
| Weight (approx.) | 103 g | 110 g |
| Standards | IEEE 802.3u (100BASE-TX) | |
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
TRM-210 ,TRM-210A-47 ,TRM-210A-49 ,TRM-210A-51 ,TRM-210A-53 ,TRM-210A-55 ,TRM-210A-57 ,TRM-210A-59 ,TRM-210A-61 ,TRM-211 |
|---|
