Junction Box

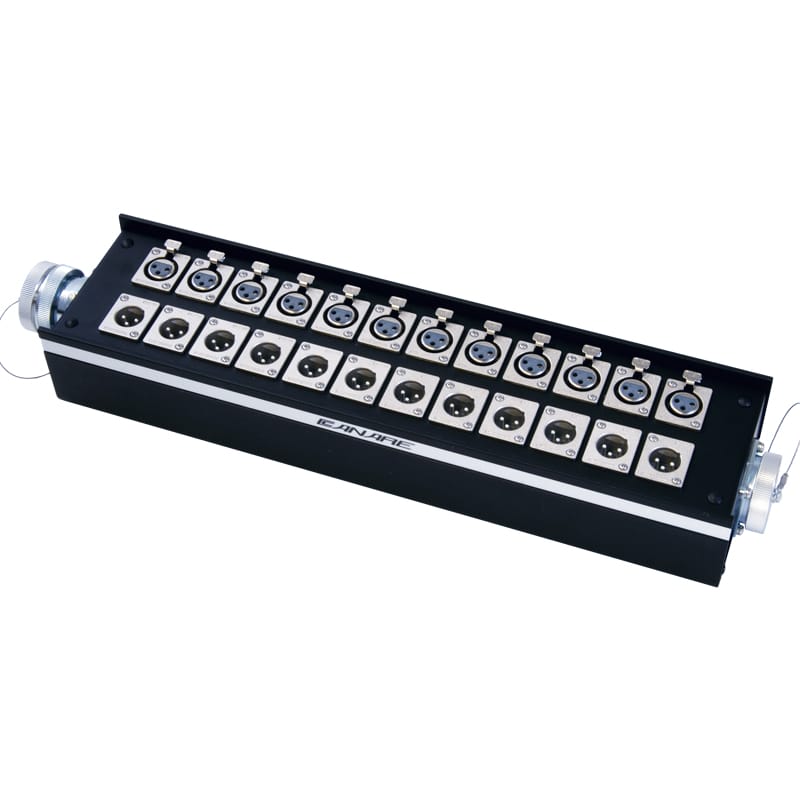

Canare junction box assemblies.
Key Features and Benefits
- Three types: Single XLR per channel, Parallel XLR per channel and Parallel XLR per channel MultiPin feed through.
- Black anodized chassis.
- Multipin dust caps included.
- 8, 12, 16, 24 or 32 channels.
Junction Box
| Type | Model | Ch | Connecter | Weight (Kg) | |
| Single XLR per channel |  | 8B1N2 | 8 | XLR3-31-F77 x 8 NK27-32S-R x 1 | 0.9 |
 | 8B2N1 | XLR3-32-F77 x 8 NK27-31S-R x 1 | 1.1 | ||
| Parallel XLR per channel |  | 8J12N2 | XLR3-31-F77 x 8、XLR3-32-F77 x 8 NK27-32S-R x 1 | 1.5 | |
 | 8J12N1 | XLR3-31-F77 x 8、XLR3-32-F77 x 8 NK27-31S-R x 1 |
|||
| Parallel XLR per channel MultiPin feed through |  | 8J12N12 | XLR3-31-F77 x 8、XLR3-32-F77 x 8 NK27-31S-R x 1、NK27-32S-R x 1 | 1.6 | |
| Single XLR per channel |  | 12B1N2 | 12 | XLR3-31-F77 x 12 NK27-32S-R x 1 | 1.3 |
 | 12B2N1 | XLR3-32-F77 x 12 NK27-31S-R x 1 | 1.2 | ||
| Parallel XLR per channel |  | 12J12N2 | XLR3-31-F77 x 12、XLR3-32-F77 x 12 NK27-32S-R x 1 | 2.1 | |
 | 12J12N1 | XLR3-31-F77 x 12、XLR3-32-F77 x 12 NK27-31S-R x 1 |
|||
| Parallel XLR per channel MultiPin feed through |  | 12J12N12 | XLR3-31-F77 x 12、XLR3-32-F77 x 12 NK27-31S-R x 1、NK27-32S-R x 1 | 2.2 | |
| Single XLR per channel |  | 16B1F2 | 16 | XLR3-31-F77 x 16 FK37-32S-R x 1 | 1.6 |
 | 16B2F1 | XLR3-32-F77 x 16 FK37-31S-R x 1 | 1.3 | ||
| Parallel XLR per channel |  | 16J12F2 | XLR3-31-F77 x 16、XLR3-32-F77 x 16 FK37-32S-R x 1 | 2.5 | |
 | 16J12F1 | XLR3-31-F77 x 16、XLR3-32-F77 x 16 FK37-31S-R x 1 |
|||
| Parallel XLR per channel MultiPin feed through |  | 16J12F12 | XLR3-31-F77 x 16、XLR3-32-F77 x 16 FK37-31S-R x 1、FK37-32S-R x 1 | 2.6 | |
| Parallel XLR per channel |  | 24B12MS | 24 | XLR3-31-F77 x 24、XLR3-32-F77 x 24 D/MS3102A32A-10P x 1 | 2.7 |
| Parallel XLR per channel MultiPin feed through |  | 24B12MSW | XLR3-31-F77 x 24、XLR3-32-F77 x 24 D/MS3102A32A-10P x 2 | 3.0 | |
| Parallel XLR per channel |  | 32B12MS | 32 | XLR3-31-F77 x 32、XLR3-32-F77 x 32 D/MS3102A36-73P x 1 | 5.3 |
| Parallel XLR per channel MultiPin feed through |  | 32B12MSW | XLR3-31-F77 x 32、XLR3-32-F77 x 32 D/MS3102A36-73P x 2 | 5.5 | |
 | 32B12MF11 | XLR3-31-F77 x 32、XLR3-32-F77 x 32 D/MS3102A36-73P x 1、FK37-31S-R x 2 | 5.7 | ||
 | 32B12MWF11 | XLR3-31-F77 x 32、XLR3-32-F77 x 32 D/MS3102A36-73P x 2、FK37-31S-R x 2 | 6.0 | ||
Multichannel Connector Pin Assignments
| Ch No. | Cable Unit Identification | 32ch | 24ch | 16ch | 8ch / 12ch | |||||||||||||||
| L-4E3 | M202 | D/MS3102A36-73 D/MS3106B36-73 | D/MS3102A32A-10 D/MS3106B32A-10 | FK37 | NK27 | |||||||||||||||
| Spiral Marker Color | Insulator Color | |||||||||||||||||||
| Identifying Color | Common identifying Color | HOT | COLD | HOT | COLD | HOT | COLD | HOT | COLD | |||||||||||
| 1 | RED | RED | WHT | A | B | A | B | 1 | 2 | 1 | 3 | |||||||||
| 2 | BLU | BLU | | | C | D | C | D | 3 | 4 | 4 | 5 | |||||||||
| 3 | YEL | YEL | | | F | H | F | G | 5 | 6 | 6 | 7 | |||||||||
| 4 | GRN | GRN | | | J | K | H | J | 8 | 9 | 8 | 9 | |||||||||
| 5 | BRN | BRN | | | L | M | K | L | 10 | 11 | 11 | 12 | |||||||||
| 6 | N/A | GRY | ▼ | N | P | N | O | 12 | 13 | 13 | 14 | |||||||||
| 7 | BLU • BLK | BLU | BLK | R | S | P | R | 14 | 15 | 15 | 16 | |||||||||
| 8 | YEL • BLK | YEL | | | T | U | S | T | 16 | 17 | 17 | 18 | |||||||||
| 9 | GRN • BLK | GRN | | | V | W | U | V | 21 | 22 | 19 | 20 | |||||||||
| 10 | BRN • BLK | BRN | | | Y | Z | X | Y | 23 | 24 | 22 | 23 | |||||||||
| 11 | BLK | GRY | ▼ | a | b | Z | a | 25 | 26 | 24 | 25 | |||||||||
| 12 | BLU • ORN | BLU | ORN | c | d | b | c | 27 | 28 | 26 | 27 | |||||||||
| 13 | YEL • ORN | YEL | | | f | g | d | e | 29 | 30 | SHIELD | ||||||||||
| 14 | GRN • ORN | GRN | | | h | i | g | h | 32 | 33 | 10 | ||||||||||
| 15 | BRN • ORN | BRN | | | j | k | j | k | 34 | 35 | |||||||||||
| 16 | ORN | GRY | ▼ | m | n | m | n | 36 | 37 | |||||||||||
| 17 | BLU • PNK | BLU | PNK | u | v | p | q | SHIELD | ||||||||||||
| 18 | YEL • PNK | YEL | | | w | x | s | t | 19 | ||||||||||||
| 19 | GRN • PNK | GRN | | | y | z | u | v | |||||||||||||
| 20 | BRN • PNK | BRN | | | AA | AB | w | x | |||||||||||||
| 21 | PNK | GRY | ▼ | AC | AD | AB | z | |||||||||||||
| 22 | BLU • WHT | BLU | RED | AE | AF | AA | AC | |||||||||||||
| 23 | YEL • WHT | YEL | | | AH | AJ | AD | AF | |||||||||||||
| 24 | GRN • WHT | GRN | | | AL | AM | AG | AE | |||||||||||||
| 25 | - | BRN | | | AN | AP | SHIELD | ||||||||||||||
| 26 | - | GRY | ▼ | AR | AS | E | ||||||||||||||
| 27 | - | YEL | BLU | AT | AU | |||||||||||||||
| 28 | - | GRN | | | AV | AW | |||||||||||||||
| 29 | - | BRN | ▼ | AX | AY | |||||||||||||||
| 30 | - | GRN | YEL | AZ | BA | |||||||||||||||
| 31 | - | BRN | | | BC | BD | |||||||||||||||
| 32 | - | GRY | ▼ | BE | BF | |||||||||||||||
| SHIELD | ||||||||||||||||||||
| ||||||||||||||||||||
Connection Method
L-4E3 Types:
Identify the channel number by the color of the spiral marker on the inner jacket (gray). The unit is 4-core construction and the insulator colors are blue, blue, white, and white. Connect these with the same colored cores, so that the blue cores are connected to Hot and the white cores to Cold.
M202 Types:
The unit is 2-core construction, with the channel number identified by the insulator color (a combination of the identifying color and common identifying color). Connect the identifying color core to Hot, and the common identifying color core to Cold.
Connections to XLR Connectors
| Polarity | HOT | COLD | SHIELD |
|---|---|---|---|
| Pin No. | 2 | 3 | 1 |
