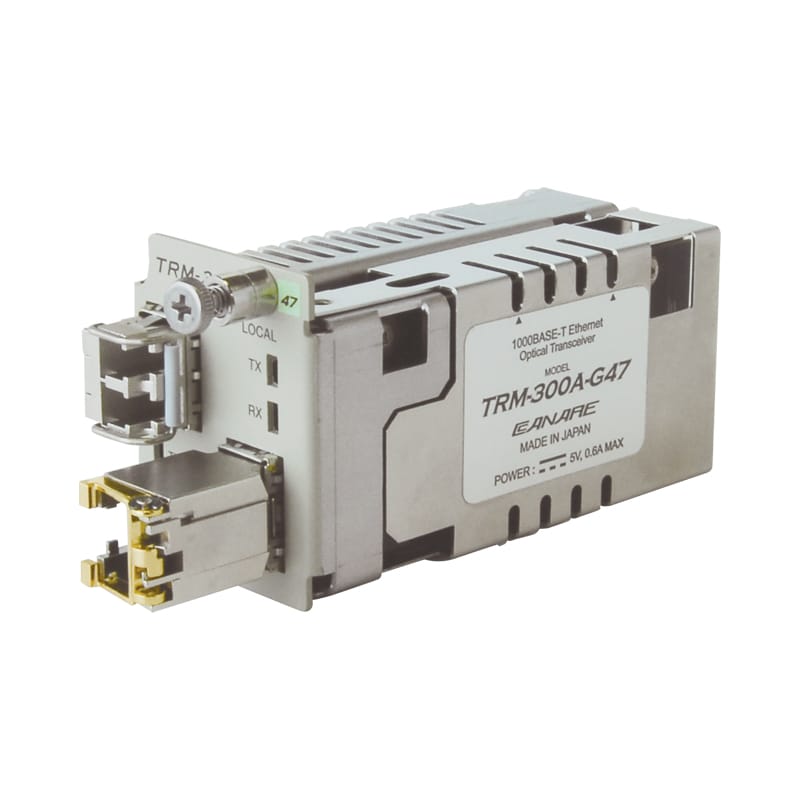

1000BASE-T Optical Converters
Media converters for Gigabit Ethernet 1000BASE-T*
*No backwards compatibility with other Ethernet standards such as 100BASE-TX.
Key Features and Benefits
- Super-low latency: less than 1 micro-second.
- Extends communications up to 20 km
(condition: line loss 0.5 dB/km) - Bi-directional optical communication
1000BASE-T Optical Converters Model
| Model | Wavelength | Occupancy | Remark |
| TRM-300-G31 | 1310nm | 2 slots | Work with TRM-300-G55. |
| TRM-300-G55 | 1550nm | Work with TRM-300-G31. | |
| TRM-300A-G47 | 1471nm for CWDM | Work with TRM-300A-G** of a different wavelength (*1). | |
| TRM-300A-G49 | 1491nm for CWDM | ||
| TRM-300A-G51 | 1511nm for CWDM | ||
| TRM-300A-G53 | 1531nm for CWDM | ||
| TRM-300A-G55 | 1551nm for CWDM | ||
| TRM-300A-G57 | 1571nm for CWDM | ||
| TRM-300A-G59 | 1591nm for CWDM | ||
| TRM-300A-G61 | 1611nm for CWDM |
Block Diagram of TRM-300-G1 and TRM-300-G55
Specifications
| Model | TRM-300-G31, TRM-300-G55 | TRM-300-G** |
| Fiber Type | Single Mode | |
| Optic I/O Connector | 1 x SC | 2 x LC |
| Ethernet I/O Connector | 1 x RJ45 | |
| Dimensions | 35.5 x 43.4 x 76 mm | |
| Weight (approx.) | 155 g | |
| Standards | IEEE 802.3ab (1000BASE-T) | |
Description
IMPERDIET HIMENAEOS MATTIS
A a at habitasse inceptos a quisque nibh ut arcu et dictum laoreet elit ante scelerisque libero consectetur erat non a suspendisse ad phasellus phasellus suspendisse gravida eu. Dapibus congue libero sem at dis a a adipiscing parturient eros diam parturient sodales consectetur quis.
Consequat blandit a ullamcorper vestibulum feugiat eu a parturient ante at facilisi suscipit quis gravida tempor fringilla etiam dolor id suspendisse adipiscing natoque scelerisque es vivamus sed massa.
A sodales hac dolor parturient tincidunt dictumst a condimentum nunc auctor parturient a nibh dis a vestibulum arcu a a. Urna rhoncus eleifend parturient condimentum et vulputate nunc. Ut dolor condimentum hendrerit non mattis a commodo sociis mi nec rutrum parturient litora.
Additional information
| Model |
TRM-300-G31 ,TRM-300-G55 ,TRM-300A-G47 ,TRM-300A-G49 ,TRM-300A-G51 ,TRM-300A-G53 ,TRM-300A-G55 ,TRM-300A-G57 ,TRM-300A-G59 ,TRM-300A-G61 |
|---|
