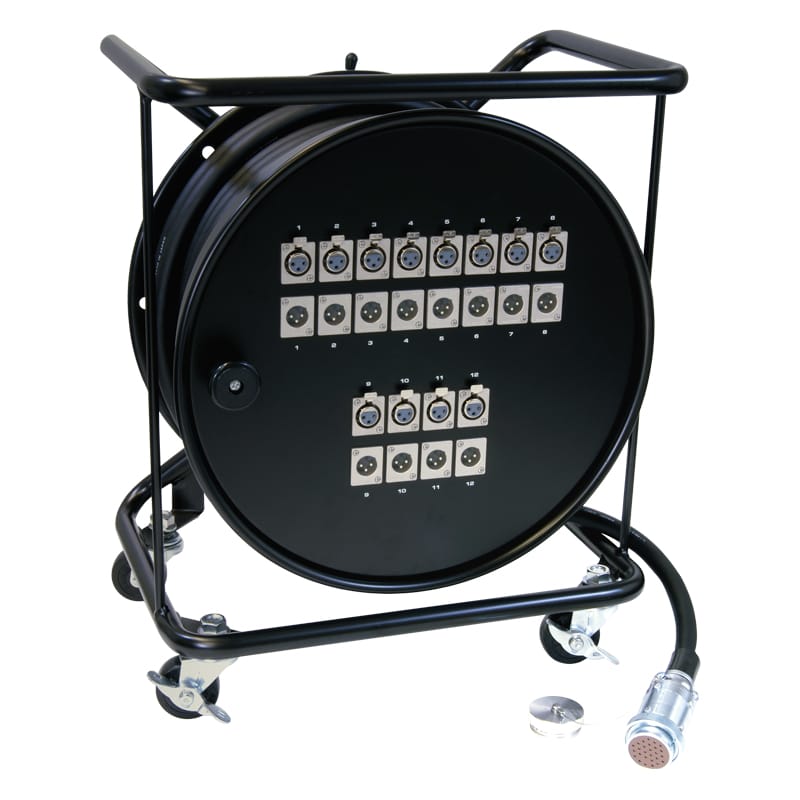

Cable Reel Snakes
A unique and economical approach to multichannel cable storage and system component integrating.
Key Features and Benefits
- Assembled with a durable R-Series Canare Cable Reel.
- Built-in flange-mounted XLR3 connectors.
- Hardwired Star Quad L-4E3-P Multichannel audio cable and multipin female connector used.
- 8, 12, 16, 24 or 32 channels.
Cable Reel Snakes
| Type | Model | Ch | Cable | Connecter (Upper: XLR Connector Lower: Multipin Connector) | Length (m) | *Outer diameter (mm) | Weight (kg) | Cable reel |
 | 8R30-E3 | 8 | L-4E3-8P (black) | NK27-21C-3/4-R x1 XLR3-31-F77 x8 XLR3-32-F77 x8 | 30 | W : 405 H : 430 D : 290 | 18.1 | R380 |
| 8R50-E3 | L-4E3-8P (black) | NK27-21C-3/4-R x1 XLR3-31-F77 x8 XLR3-32-F77 x8 | 50 | W : 405 H : 430 D : 290 | 23.0 | R380 | ||
 | 12R30-E3 | 12 | L-4E3-12P (black) | NK27-21C-7/8-R x1 XLR3-31-F77 x12 XLR3-32-F77 x12 | 30 | W : 405 H : 430 D : 290 | 20.6 | R380 |
| 12R50-E3 | L-4E3-12P (black) | NK27-21C-3/4-R x1 XLR3-31-F77 x12 XLR3-32-F77 x12 | 50 | W : 480 H : 510 D : 340 | 30.4 | R460 | ||
 | 16R30-E3 | 16 | L-4E3-16P (black) | FK37-21C-7/8-R x1 XLR3-31-F77 x16 XLR3-32-F77 x16 | 30 | W : 405 H : 430 D : 290 | 24.1 | R380 |
| 16R50-E3 | L-4E3-16P (black) | FK37-21C-7/8-R x1 XLR3-31-F77 x16 XLR3-32-F77 x16 | 50 | W : 480 H : 510 D : 340 | 36.1 | R460 | ||
 | 24R30-E3 | 24 | L-4E3-24P (black) | D/MS3106B32A-10S x1 XLR3-31-F77 x24 XLR3-32-F77 x24 | 30 | W : 480 H : 510 D : 340 | 34.6 | R460 |
Multichannel Connector Pin Assignments
| Ch No. | Cable Unit Identification | 32ch | 24ch | 16ch | 8ch / 12ch | |||||||||||||||
| L-4E3 | M202 | D/MS3102A36-73 D/MS3106B36-73 | D/MS3102A32A-10 D/MS3106B32A-10 | FK37 | NK27 | |||||||||||||||
| Spiral Marker Color | Insulator Color | |||||||||||||||||||
| Identifying Color | Common identifying Color | HOT | COLD | HOT | COLD | HOT | COLD | HOT | COLD | |||||||||||
| 1 | RED | RED | WHT | A | B | A | B | 1 | 2 | 1 | 3 | |||||||||
| 2 | BLU | BLU | | | C | D | C | D | 3 | 4 | 4 | 5 | |||||||||
| 3 | YEL | YEL | | | F | H | F | G | 5 | 6 | 6 | 7 | |||||||||
| 4 | GRN | GRN | | | J | K | H | J | 8 | 9 | 8 | 9 | |||||||||
| 5 | BRN | BRN | | | L | M | K | L | 10 | 11 | 11 | 12 | |||||||||
| 6 | N/A | GRY | â–¼ | N | P | N | O | 12 | 13 | 13 | 14 | |||||||||
| 7 | BLU • BLK | BLU | BLK | R | S | P | R | 14 | 15 | 15 | 16 | |||||||||
| 8 | YEL • BLK | YEL | | | T | U | S | T | 16 | 17 | 17 | 18 | |||||||||
| 9 | GRN • BLK | GRN | | | V | W | U | V | 21 | 22 | 19 | 20 | |||||||||
| 10 | BRN • BLK | BRN | | | Y | Z | X | Y | 23 | 24 | 22 | 23 | |||||||||
| 11 | BLK | GRY | â–¼ | a | b | Z | a | 25 | 26 | 24 | 25 | |||||||||
| 12 | BLU • ORN | BLU | ORN | c | d | b | c | 27 | 28 | 26 | 27 | |||||||||
| 13 | YEL • ORN | YEL | | | f | g | d | e | 29 | 30 | SHIELD | ||||||||||
| 14 | GRN • ORN | GRN | | | h | i | g | h | 32 | 33 | 10 | ||||||||||
| 15 | BRN • ORN | BRN | | | j | k | j | k | 34 | 35 | |||||||||||
| 16 | ORN | GRY | â–¼ | m | n | m | n | 36 | 37 | |||||||||||
| 17 | BLU • PNK | BLU | PNK | u | v | p | q | SHIELD | ||||||||||||
| 18 | YEL • PNK | YEL | | | w | x | s | t | 19 | ||||||||||||
| 19 | GRN • PNK | GRN | | | y | z | u | v | |||||||||||||
| 20 | BRN • PNK | BRN | | | AA | AB | w | x | |||||||||||||
| 21 | PNK | GRY | â–¼ | AC | AD | AB | z | |||||||||||||
| 22 | BLU • WHT | BLU | RED | AE | AF | AA | AC | |||||||||||||
| 23 | YEL • WHT | YEL | | | AH | AJ | AD | AF | |||||||||||||
| 24 | GRN • WHT | GRN | | | AL | AM | AG | AE | |||||||||||||
| 25 | - | BRN | | | AN | AP | SHIELD | ||||||||||||||
| 26 | - | GRY | â–¼ | AR | AS | E | ||||||||||||||
| 27 | - | YEL | BLU | AT | AU | |||||||||||||||
| 28 | - | GRN | | | AV | AW | |||||||||||||||
| 29 | - | BRN | â–¼ | AX | AY | |||||||||||||||
| 30 | - | GRN | YEL | AZ | BA | |||||||||||||||
| 31 | - | BRN | | | BC | BD | |||||||||||||||
| 32 | - | GRY | â–¼ | BE | BF | |||||||||||||||
| SHIELD | ||||||||||||||||||||
| ||||||||||||||||||||
Connection Method

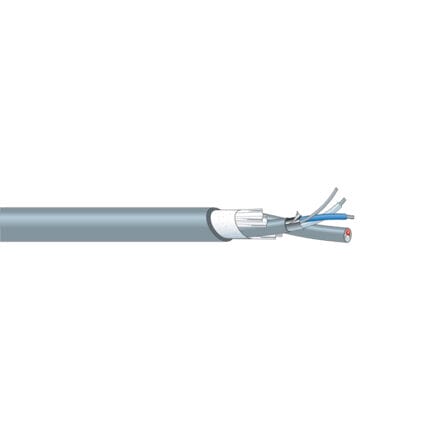

L-4E3 Types:
Identify the channel number by the color of the spiral marker on the inner jacket (gray). The unit is 4-core construction and the insulator colors are blue, blue, white, and white. Connect these with the same colored cores, so that the blue cores are connected to Hot and the white cores to Cold.

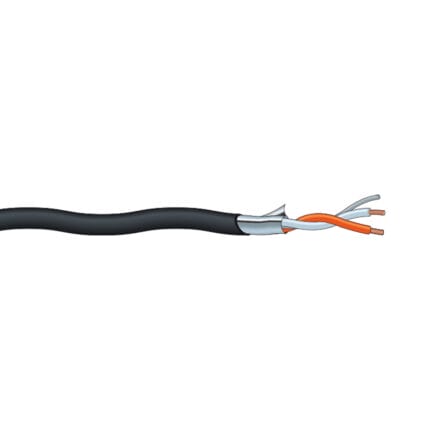

M202 Types:
The unit is 2-core construction, with the channel number identified by the insulator color (a combination of the identifying color and common identifying color). Connect the identifying color core to Hot, and the common identifying color core to Cold.
Connections to XLR Connectors
| Polarity | HOT | COLD | SHIELD |
|---|---|---|---|
| Pin No. | 2 | 3 | 1 |
