Ethernet Cables (Standard STP)
Category 6A, Category 6, and Category 5e cable assemblies for fixed installation with arched latch lever plugs.
Key Features and Benefits
- Comply with PoE standards. (PoE, PoE+, PoE++)
- Cat6A with RJ45 modular plug on both ends.
- Specially designed for fixed installation.
- Used with excellent latch lever plugs durability by arched latch.
CAT6A (Standard F/UTP)
| Type | Model | Length(m) |
RJ45 - RJ45 T568B (Straight) Colors: LB | NC6AFSD-01 | 1 |
| NC6AFSD-015 | 1.5 | |
| NC6AFSD-02 | 2 | |
| NC6AFSD-03 | 3 | |
| NC6AFSD-05 | 5 | |
| NC6AFSD-07 | 7 | |
| NC6AFSD-10 | 10 | |
| NC6AFSD-15 | 15 | |
| NC6AFSD-20 | 20 | |
| NC6AFSD-25 | 25 | |
| NC6AFSD-30 | 30 | |
| NC6AFSD-35 | 35 | |
| NC6AFSD-40 | 40 | |
| NC6AFSD-45 | 45 | |
| NC6AFSD-50 | 50 | |
| NC6AFSD-70 | 70 |
Key Features and Benefits / Cat6A (Standard UTP)
- Supports high-frequency ranges up to 500 MHz, five times that of Cat5e, providing a highspeed network environment.
- Comply with 10BASE-T,100BASE-T,1000BASE-T,1000BASE-TX and 10GBASE-T.
- Compared to Cat5e and Cat6, it improves crosstalk noise reduction and anti-noise performance.
- Have a built-in cross filler which reduces cross talk between the pair of conductors.
- Overall shields offer outstanding noise rejection.
- Comply with ANSI/TIA 568.2 D Standards.
- RJ45 modular plug on both ends.
- Used with excellent latch lever plugs durability by arched latch.
Note: Bulk cable; RJC6A -4P- F- SD is not sold separately.

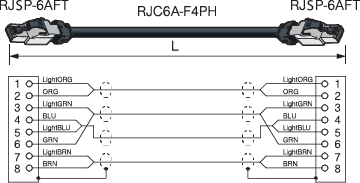

CAT6A (Standard U/FTP)
|
Type |
Model |
Length(m) |
|---|---|---|
|
RJ45 - RJ45
T568B (Straight) Colors: BLK |
NC6AAT-30NEW |
30 |
| NC6AAT-50NEW |
50 |
|
| NC6AAT-70NEW |
70 |
|
| NC6AAT-100NEW |
100 |
Key Features and Benefits
- Cat6A U/FTP cable with RJ45 field termination modular plug.
- Type of use: Fixed installation.
- Removal latch button construction prevents accidental disconnections.
- Space-saving design.
- HDBaseT3.0 Premium certified.
- Supports 4K 60P 4:4:4 up to 100 meters.
Cat6 (Standard F/UTP) / Cat6 (Standard U/UTP)
| Type | Model | Length(m) |
RJ45 - RJ45STP T568B (Straight) Colors: BLKLB | NC6F-01 | 1 |
| NC6F-015 | 1.5 | |
| NC6F-02 | 2 | |
| NC6F-03 | 3 | |
| NC6F-05 | 5 | |
| NC6F-07 | 7 | |
| NC6F-10 | 10 | |
| NC6F-15 | 15 | |
| NC6F-20 | 20 | |
| NC6F-25 | 25 | |
| NC6F-30 | 30 | |
| NC6F-35 | 35 | |
| NC6F-40 | 40 | |
| NC6F-45 | 45 | |
| NC6F-50 | 50 | |
| NC6F-70 | 70 | |
| NC6F-100 | 100 | |
RJ45 - RJ45UTP T568B (Straight) Colors: BLKGRY | NC6-003 | 0.3 |
| NC6-005 | 0.5 | |
| NC6-01 | 1 | |
| NC6-015 | 1.5 | |
| NC6-02 | 2 | |
| NC6-03 | 3 | |
| NC6-05 | 5 | |
| NC6-07 | 7 | |
| NC6-10 | 10 | |
| NC6-15 | 15 | |
| NC6-20 | 20 | |
| NC6-25 | 25 | |
| NC6-30 | 30 | |
| NC6-35 | 35 | |
| NC6-40 | 40 | |
| NC6-45 | 45 | |
| NC6-50 | 50 |
Key Features and Benefits / Cat6 (Standard F/UTP) / Cat6 (Standard U/UTP)
- Comply with 10BASE-T,100BASE-T,1000BASE-T and 1000BASE-TX.
- Have a built-in cross filler which reduces cross talk between the pair of conductors.
- RJ45 modular plug on both ends.
- Used with excellent latch lever plugs durability by arched latch.
Cat5e (Standard U/UTP)
| Type | Model | Length(m) |
RJ45 - RJ45STP T568B (Straight) Colors: LB | NC5E-003 | 0.3 |
| NC5E-005 | 0.5 | |
| NC5E-01 | 1 | |
| NC5E-015 | 1.5 | |
| NC5E-02 | 2 | |
| NC5E-03 | 3 | |
| NC5E-05 | 5 | |
| NC5E-07 | 7 | |
| NC5E-10 | 10 | |
| NC5E-15 | 15 | |
| NC5E-20 | 20 | |
| NC5E-25 | 25 | |
| NC5E-30 | 30 | |
| NC5E-35 | 35 | |
| NC5E-40 | 40 | |
| NC5E-45 | 45 | |
| NC5E-50 | 50 |
Key Features and Benefits / Cat5e (Standard U/UTP)
- Comply with 10BASE-T,100BASE-T and 1000BASE-T.
- RJ45 modular plug on both ends.
- Used with excellent latch lever plugs durability by arched latch.
