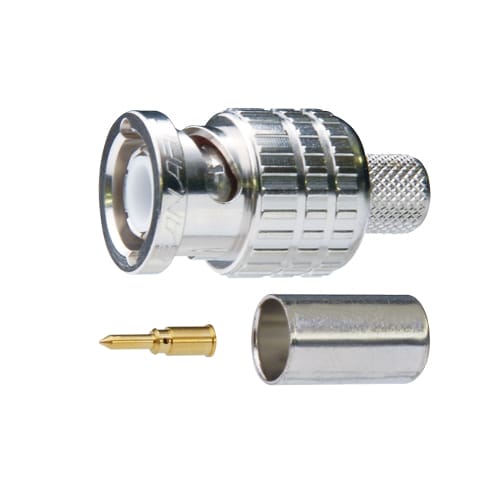

50Ω BNC Crimp Plugs
VSWR of 1.1 or less up to 2 GHz, 1.2 or less up to 4 GHz.
Key Features and Benefits
- Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the contact pins.
- Elongated body design for straight type enables easy attachment and removal.
- Gold plating on the contact pin prevents deterioration, even after years of use.
- Use of crimping to attach the connectors ensures quick, reliable installation.
Note: Be sure to use Canare Crimp Tool.
Straight
Model | Suitable Cable | Center Pin | Sleeve | Boot | Die Set | Standard Package |
|---|---|---|---|---|---|---|
BP-C3 | L-3D2V, 3D-2V | BN1023A | BN7003A | CB03 | TCD-35D | 20 pcs
|
BP-C31 | L-3D2W, 3D-2W | BN1023A | BN7011 | CB04 | TCD-3151D | |
BP-C4 | RG-58C/U, RG-58A/U | BN1024A | BN7030A | CB03 | TCD-35D | |
BP-C5 | L-5D2V, 5D-2V | BN1025B | BN7016 | CB05A | TCD-35D | |
BP-C51 | L-5D2W, 5D-2W | BN1025B | BN7002 | - | TCD-3151D | |
BP-C5FA | L-5DFB, 5D-FB | BN1016C | B75004A | CB05A | TCD-35DF, TCD-55FA | |
BP-C51F | L-5DFBW-PE | BN1016C | BN7002 | - |
Right Angle
Model | Suitable Cable | Center Pin | Sleeve | Die Set | Standard Package |
|---|---|---|---|---|---|
BP-LC31 | L-3D2W, 3D-2W | BN1023A | BN7011 | TCD-3151D | 20 pcs |
BP-LC51 | L-5D2W, 5D-2W | BN1025B | BN7002 |
Return Loss
BP-C31
